Affichage graphique d'affichage à cristaux liquides

256x128 Graphic LCD Module with FSTN Display Mode and 6 0'clock Viewing Angle for Industrial Control and Medical Devices

256x128 Graphic LCD Module with FSTN Display Mode and 6 0'clock Viewing Angle for Industrial Control and Medical Devices

Nom De Marque:	Enrich
Numéro De Modèle:	ENH-DG256128-01
Prix:	$1.50-$10.00
Conditions De Paiement:	T / t

Informations détaillées

Description du produit

Informations détaillées

Lieu d'origine:

CHINE

Certification:

Rohs，ISO9001

Mode d'affichage:

FSTN/TRANSFLECTIVE/POSITIVE

Angle de vision:

6 0'Clock

Conduire IC:

UC1628C

Mettre en évidence:

256x128 Graphic LCD Module

6 0'clock Viewing Angle LCD Display

UC1628C Drive IC Dot Matrix LCD

Description du produit

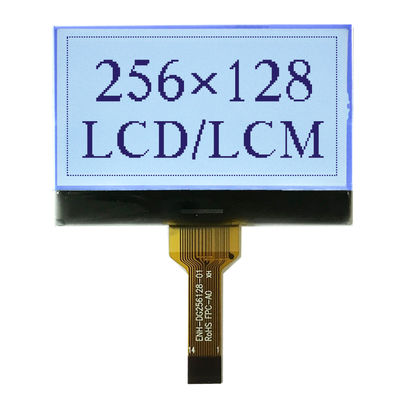

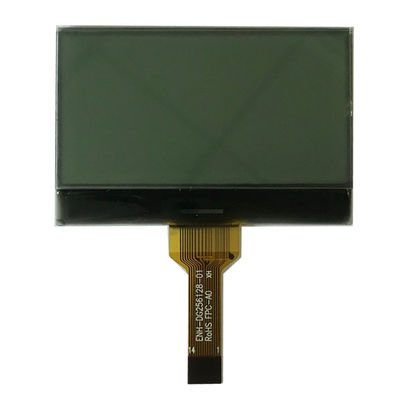

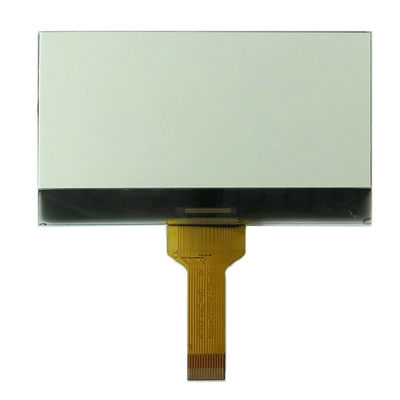

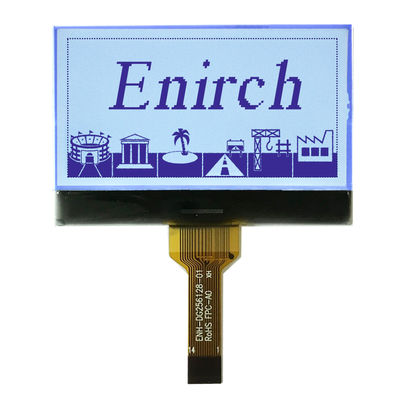

256x128 Graphic LCD Module COG FPC FSTN Dot Matrix LCD Display

Product Overview

High-resolution 256x128 graphic LCD module featuring COG (Chip-on-Glass) technology with FPC (Flexible Printed Circuit) interface and FSTN (Film-compensated Super Twisted Nematic) display technology.

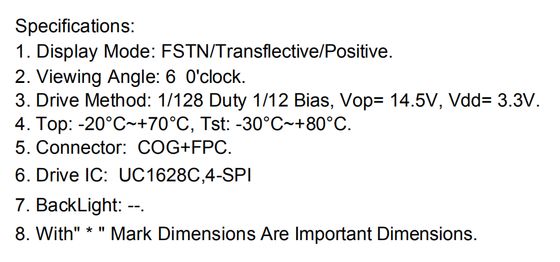

Technical Specifications

Attribute	Value
Display Mode	FSTN/Transflective/Positive
Viewing Angle	6 o'clock
Drive IC	UC1628C
Drive Method	1/128 Duty, 1/12 Bias
Operating Temperature	-20℃ to +70℃
Storage Temperature	-30℃ to +80℃
Connector	COG+FPC

Primary Application Areas

Industrial Control
- Equipment status display
- Instrumentation panels
Consumer Electronics
- Portable device displays
- Home appliance interfaces
Medical Devices
- Portable medical instruments
- Basic diagnostic devices
Transportation Systems
- Shared device lock screens
- In-vehicle information terminals
Retail & Payment
- POS systems
- Electronic shelf labels
Communication Devices
- Walkie-talkie status screens
- Network equipment indicators

Frequently Asked Questions

Can small-sized LCD screens be equipped with touch functions?

Yes. This is a very common requirement. The touch panel is typically laminated onto the surface of the LCD. Main types:

Resistive Touch: Low cost, resistant to surface contaminants (dust, water), works with any object. Lower transmittance, relatively less durable (scratches), usually no multi-touch.
Capacitive Touch: High transmittance, sensitive and smooth touch, supports multi-touch, durable (glass surface). Higher cost, requires finger or special stylus, sensitive to water/oil on surface.

How long is the lifespan of a small-sized LCD screen?

Lifetime primarily refers to the Backlight lifespan (usually measured in hours until brightness drops to 50% of initial) and the reliability of the LCD Panel itself.

Backlight Lifetime: Common LED backlights typically last 30,000 to 70,000 hours (approx. 3.5 to 8 years of continuous use). High temperatures significantly reduce this.
LCD Panel Lifetime: Generally very long, often 50,000 hours or more under normal operating conditions (avoiding physical shock, extreme temperatures, excessive humidity). The screen itself typically does not suffer from "burn-in".

How long does it usually take for a sample?

Samples usually take 3 to 5 days to be dispatched.

How long is the delivery cycle generally?

The delivery time is within 20 to 30 days.
