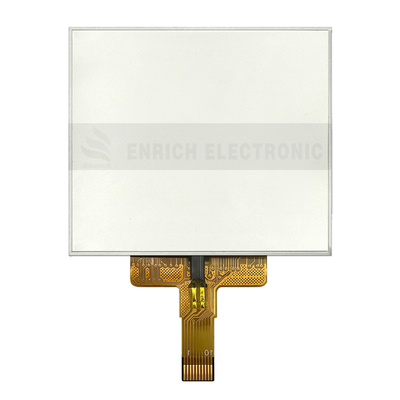

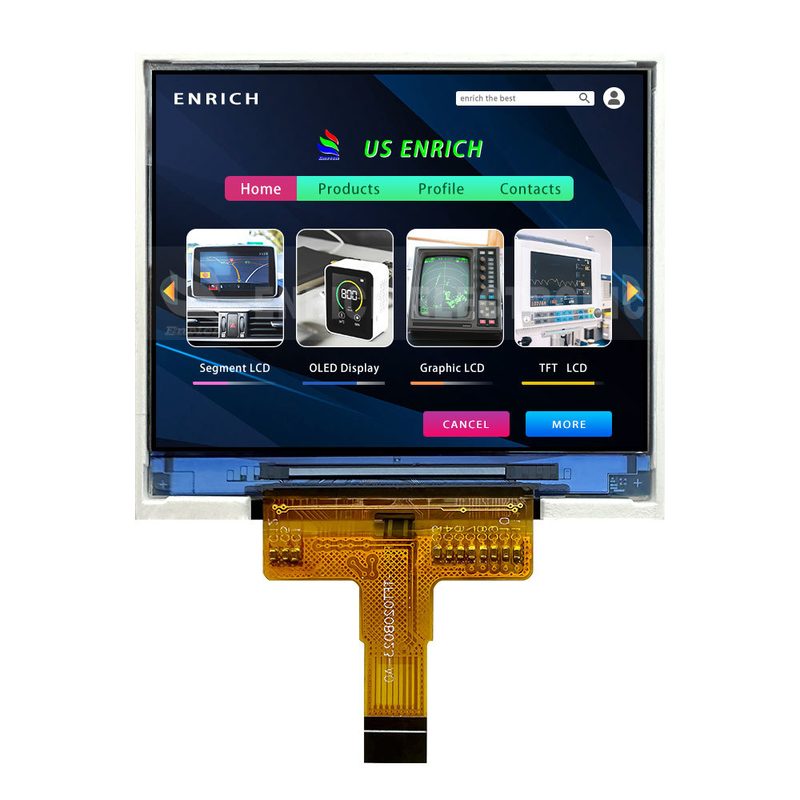

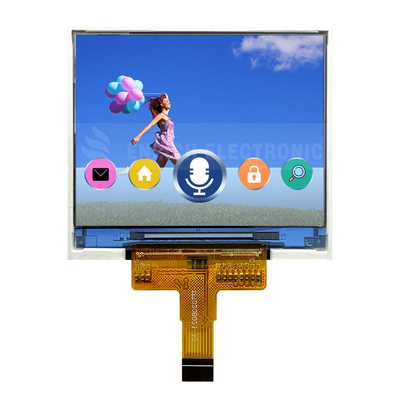

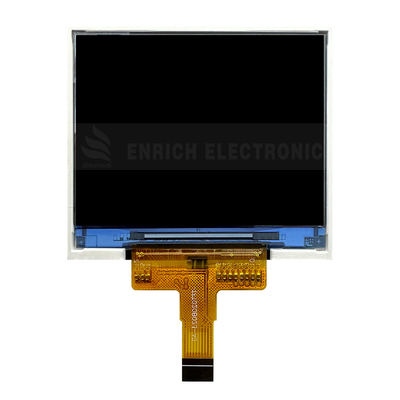

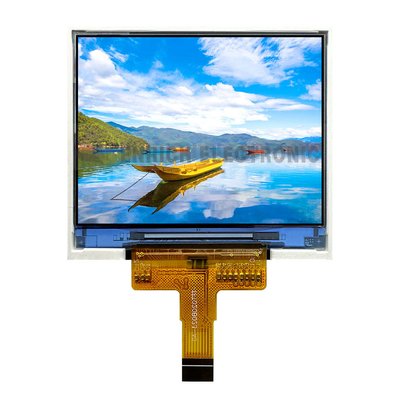

2 Inch Tft Lcd Display Arduino 320x240 Resolution ILI9342C TFT LCD Module

2 Inch Tft Lcd Display Arduino 320x240 Resolution ILI9342C TFT LCD Module

Επωνυμία:	Enrich
Αριθμός μοντέλου:	ENHT-Th0200A021
τιμή:	$1.50-$10.00
Όροι πληρωμής:	T/t

Λεπτομέρειες

Περιγραφή προϊόντος

Λεπτομέρειες

Τόπος καταγωγής:

ΚΙΝΑ

Πιστοποίηση:

ISO9001,Rosh

Υλικό:

TFT

Μέγεθος LCD:

45.9x40.96x2.53 mm

Διασυνδέομαι:

Κηλίδα

Γωνιά προβολής:

IPS

Οδήγηση IC:

ILI9342C

Ψήφισμα:

320x240

Επισημαίνω:

2 inch TFT LCD display module

Arduino compatible TFT LCD

320x240 resolution ILI9342C module

Περιγραφή προϊόντος

2 Inch TFT LCD Display 320x240 Resolution ILI9342C TFT LCD Module

Product Description

2 Inch TFT LCD Display Touch 320x240 Resolution LCD Module with premium display performance and multi-interface flexibility.

Product Specifications

Attribute	Value
Material	TFT
LCD Size	45.9x40.96x2.53 mm
Interface	SPI
Viewing Angle	IPS
Driving IC	ILI9342C
Resolution	320x240

Product Overview

LCD Size: 2 Inch
Resolution: 320x240
Viewing Angle: IPS
Driving IC: ILI9342C
Interface: SPI

Application Fields

Industrial Control Systems HMI for PLCs, motor control panels, multi-parameter instrument displays.

Portable Medical Equipment Handheld ultrasound displays, vital sign monitors, endoscope imaging units.

Automotive Electronics Rearview mirror displays, OBD scanners, motorcycle navigation systems (IP65 rated).

Smart Home Hub IoT control dashboards, video intercom displays for access control.

Consumer Electronics Retro gaming handhelds, mobile payment terminals, portable media players.

Key Advantages

Premium Display Performance
All-Scenario Visibility
Multi-Interface Flexibility

Frequently Asked Questions

Can small-sized LCD screens be equipped with touch functions?

Yes. This is a very common requirement. The touch panel is typically laminated onto the surface of the LCD. Main types:

Resistive Touch: Low cost, resistant to surface contaminants (dust, water), works with any object. Lower transmittance, relatively less durable (scratches), usually no multi-touch.
Capacitive Touch: High transmittance, sensitive and smooth touch, supports multi-touch, durable (glass surface). Higher cost, requires finger or special stylus, sensitive to water/oil on surface.

How long is the lifespan of a small-sized LCD screen?

Lifetime primarily refers to the Backlight lifespan (usually measured in hours until brightness drops to 50% of initial) and the reliability of the LCD Panel itself.

Backlight Lifetime: Common LED backlights typically last 30,000 to 70,000 hours (approx. 3.5 to 8 years of continuous use). High temperatures significantly reduce this.
LCD Panel Lifetime: Generally very long, often 50,000 hours or more under normal operating conditions (avoiding physical shock, extreme temperatures, excessive humidity). The screen itself typically does not suffer from "burn-in".

How long does it usually take for a sample?

Samples usually take 3 to 5 days to be dispatched.

How long is the delivery cycle generally?

The delivery time is within 20 to 30 days.
