products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
TFT LCD Touch Screen
Created with Pixso.

3.97 Inch Tft Touch Display 480x800 Resolution MIPI RGB Interface IPS TFT LCD Touch Screen

3.97 Inch Tft Touch Display 480x800 Resolution MIPI RGB Interface IPS TFT LCD Touch Screen

Brand Name: Enrich
Model Number: ENH-TV0397C013
MOQ: 2000
Price: $1.50-$10.00
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
Rohs,ISO9001
Size:
3.97 Inch
Resolution:
480x800
Viewing Angles:
All
Driving IC:
ST7701S+GT911
Highlight:

3.97 Inch Tft Touch Display

,

3.97 Inch tft touch screen

,

480x800 Resolution Tft Touch Display

Product Description

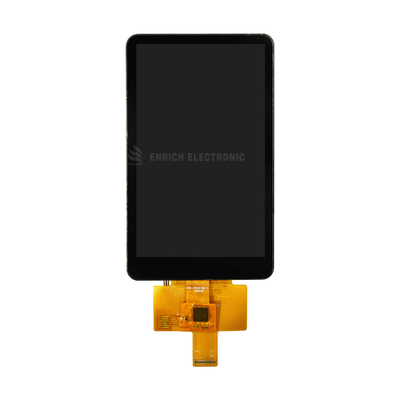

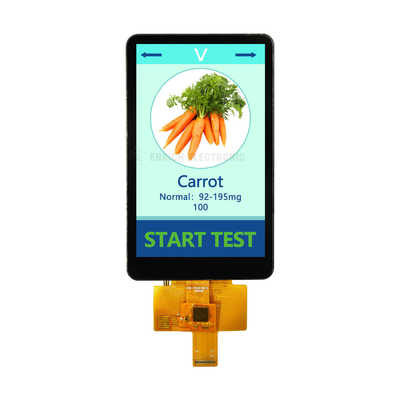

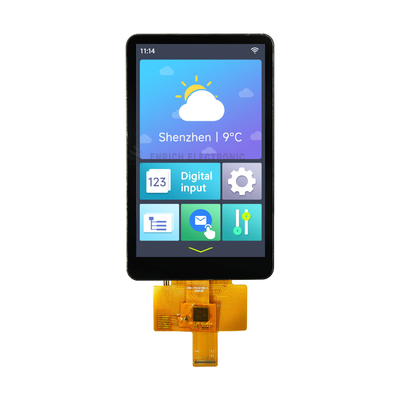

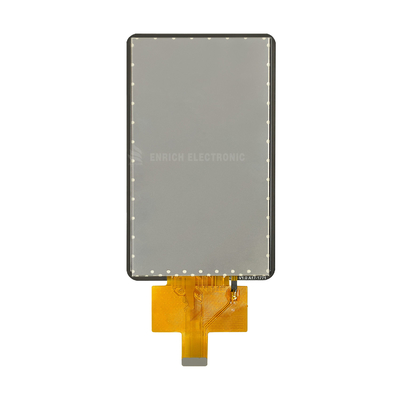

3.97'' 480×800 Resolution MIPI RGB Interface IPS Touch TFT LCD Module
Product Specifications
Attribute Value
Size 3.97 Inch
Resolution 480×800
Viewing Angles All
Driving IC ST7701S+GT911
Display Features
This 3.97-inch color display combines modern IPS LCD technology with touch functionality for superior performance in various applications.
  • Diagonal Size: 3.97 inches (measured diagonally)
  • High Resolution: 480×800 pixels for sharp image quality
  • Advanced Technology: IPS LCD panel for superior viewing angles (160°/160° or better)
  • Bright Display: 300 to 1000+ nits brightness range
  • High Contrast Ratio: 500:1 to 1000:1 or better
  • Touch Interface: Capacitive touchscreen support
  • Flexible Connectivity: MIPI RGB interface compatibility
  • Efficient Power: Low power consumption with 3.3V or 5V operation
  • LED Backlit: Thin profile with energy-efficient illumination
3.97 Inch Tft Touch Display 480x800 Resolution MIPI RGB Interface IPS TFT LCD Touch Screen 0 3.97 Inch Tft Touch Display 480x800 Resolution MIPI RGB Interface IPS TFT LCD Touch Screen 1 3.97 Inch Tft Touch Display 480x800 Resolution MIPI RGB Interface IPS TFT LCD Touch Screen 2 3.97 Inch Tft Touch Display 480x800 Resolution MIPI RGB Interface IPS TFT LCD Touch Screen 3 3.97 Inch Tft Touch Display 480x800 Resolution MIPI RGB Interface IPS TFT LCD Touch Screen 4 3.97 Inch Tft Touch Display 480x800 Resolution MIPI RGB Interface IPS TFT LCD Touch Screen 5
Application Areas
The 3.97-inch display size offers an optimal balance between visibility and compactness, making it ideal for numerous professional and consumer applications:
  • Wearable Technology: Smartwatches and fitness trackers with enhanced display capabilities
  • Industrial Equipment: Handheld meters, control panels, and HMI devices
  • Medical Devices: Portable diagnostic tools and patient monitoring systems
  • Consumer Electronics: Portable gaming devices and smart home controllers
  • IoT Solutions: Smart home hubs and environmental monitoring interfaces
  • Automotive Systems: Secondary displays and information panels
  • Retail Technology: Compact POS terminals and inventory scanners
  • Navigation Devices: Portable GPS units with clear displays
  • Smart Appliances: Enhanced control interfaces for modern home devices
