Portable 4.3 Inch Tft Lcd Display RGB Interface 480x272 Resolution ST7282

Portable 4.3 Inch Tft Lcd Display RGB Interface 480x272 Resolution ST7282

Brand Name: ENH-TV0430006A
Model Number: ENH-TV0430006A
MOQ: 2000 pcs
Price: $1.50-$10.00
Payment Terms: T/T
Detail Information
Place of Origin:
China
Certification:
ISO9001,Rosh
Material:
TFF
LCD Size:
4.3 Inch
Resolution:
480x272
Interface:
RGB
Viewing Angle:
12 0'clock
Driving IC:
ST7282
Highlight:

Portable 4.3 Inch Tft Lcd Display

,

ST7282 lcd module tft

,

ST7282 4.3 Inch Tft Lcd Display

Product Description
4.3 Inch RGB Interface 480x272 Resolution ST7282 TFT LCD Module
Product Specifications
Attribute Value
Material TFF
LCD Size 4.3 Inch
Resolution 480x272
Interface RGB
Viewing Angle 12 0'clock
Driving IC ST7282

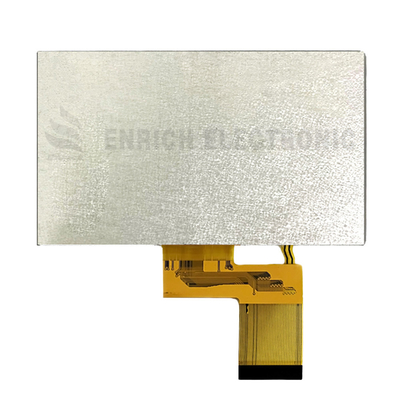

Portable 4.3 Inch Tft Lcd Display RGB Interface 480x272 Resolution ST7282 0
Key Parameters
  • Size: 4.3 Inch
  • Resolution: 480 × 272 pixels
  • Brightness: Typical range: 300-1000 cd/m²
  • Interfaces: RGB
  • Backlight: LED edge lighting

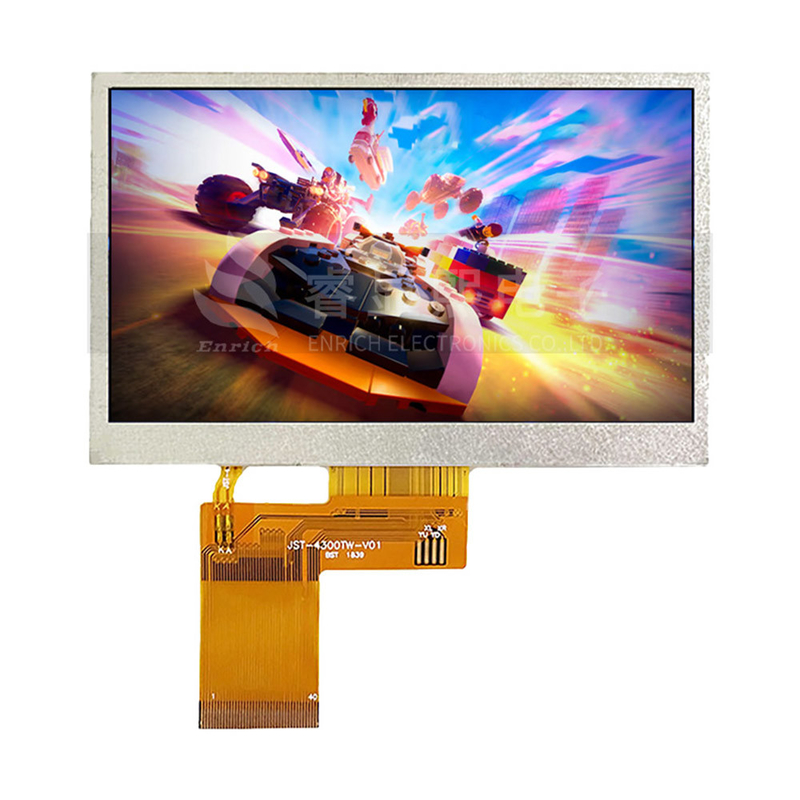

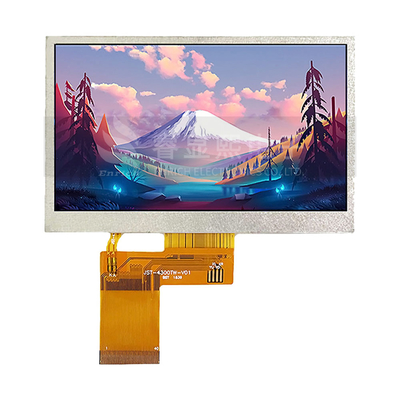

Portable 4.3 Inch Tft Lcd Display RGB Interface 480x272 Resolution ST7282 1 Portable 4.3 Inch Tft Lcd Display RGB Interface 480x272 Resolution ST7282 2
Primary Application Areas
  • Automotive Electronics: In-dash displays (rearview cameras, climate control), aftermarket GPS/navigation systems
  • Industrial Control & HMI: Machine operation panels, PLC controllers, handheld test equipment, factory automation interfaces
  • Medical Devices: Portable monitors (ECG, blood pressure), diagnostic tools, infusion pumps
  • Consumer Electronics: Home automation hubs, smart appliances (ovens, coffee makers), gaming consoles
  • Portable Devices: Handheld POS terminals, barcode scanners, ruggedized tablets
  • IoT & Embedded Systems: Smart farming sensors, security system keypads, energy management displays
  • Transportation & Marine: Fleet management systems, marine dashboards, aviation auxiliary displays
  • Retail & Hospitality: Self-service kiosks, digital menu boards, payment terminals

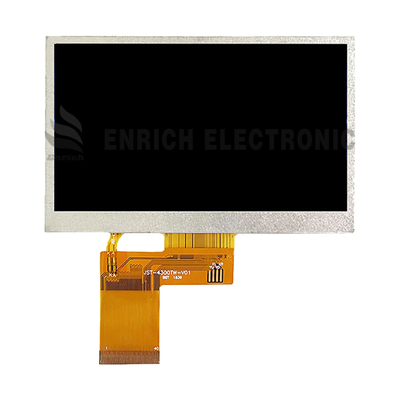

Portable 4.3 Inch Tft Lcd Display RGB Interface 480x272 Resolution ST7282 3 Portable 4.3 Inch Tft Lcd Display RGB Interface 480x272 Resolution ST7282 4 Portable 4.3 Inch Tft Lcd Display RGB Interface 480x272 Resolution ST7282 5
Frequently Asked Questions
Can small-sized LCD screens be equipped with touch functions?

Yes. This is a very common requirement. The touch panel is typically laminated onto the surface of the LCD. Main types:

  • Resistive Touch: Low cost, resistant to surface contaminants (dust, water), works with any object. Lower transmittance, relatively less durable (scratches), usually no multi-touch.
  • Capacitive Touch: High transmittance, sensitive and smooth touch, supports multi-touch, durable (glass surface). Higher cost, requires finger or special stylus, sensitive to water/oil on surface.
How long is the lifespan of a small-sized LCD screen?

Lifetime primarily refers to the Backlight lifespan (usually measured in hours until brightness drops to 50% of initial) and the reliability of the LCD Panel itself.

  • Backlight Lifetime: Common LED backlights typically last 30,000 to 70,000 hours (approx. 3.5 to 8 years of continuous use). High temperatures significantly reduce this.
  • LCD Panel Lifetime: Generally very long, often 50,000 hours or more under normal operating conditions (avoiding physical shock, extreme temperatures, excessive humidity). The screen itself typically does not suffer from "burn-in".
How long does it usually take for a sample?

Samples usually take 3 to 5 days to be dispatched.

How long is the delivery cycle generally?

The delivery time is within 20 to 30 days.
