products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
TFT LCD Module
Created with Pixso.

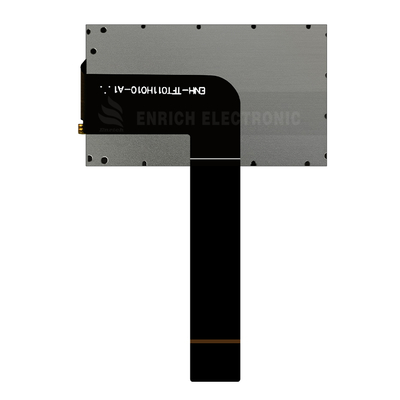

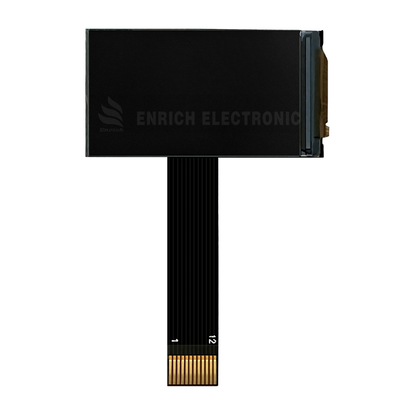

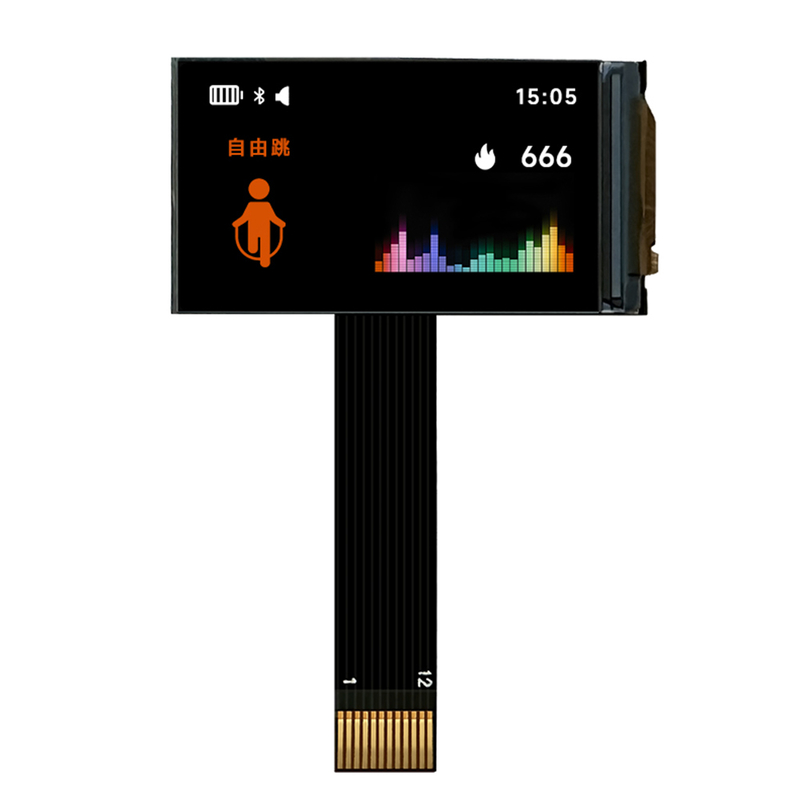

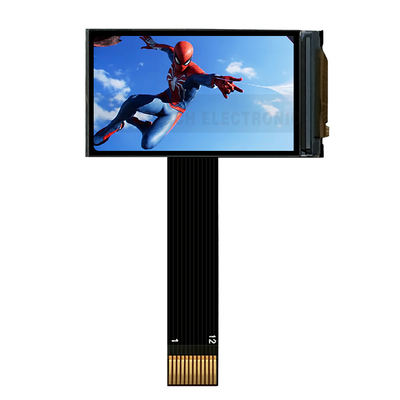

1.14 Inch TFT LCD Module SPI 135x240 Resolution Driving IC ST7789

1.14 Inch TFT LCD Module SPI 135x240 Resolution Driving IC ST7789

Brand Name: Enrich
Model Number: ENH-TV0114003A
MOQ: 2000 pcs
Price: $1.50-$10.00
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
ISO9001,Rosh
Material:
TFT
LCD Size:
31x17.6x1.6 Mm
Interface:
SPI
Viewing Angle:
IPS
Driving IC:
ST7789
Resolution:
135x240
Highlight:

1.14 Inch TFT LCD Module

,

1.14 Inch spi lcd module

,

ST7789 TFT LCD Module

Product Description
1.14 Inch TFT LCD Module SPI 135x240 Resolution Driving IC ST7789 TFT Display
Product Specifications
Attribute Value
Material TFT
LCD Size 31x17.6x1.6 mm
Interface SPI
Viewing Angle IPS
Driving IC ST7789
Resolution 135x240
Product Overview
1.14 Inch TFT LCD Module SPI 135x240 Resolution Driving IC ST7789 0
  • LCD Size: 1.14 Inch
  • Resolution: 135x240
  • Viewing Angle: IPS
  • Driving IC: ST7789
  • Interface: SPI
1.14 Inch TFT LCD Module SPI 135x240 Resolution Driving IC ST7789 1 1.14 Inch TFT LCD Module SPI 135x240 Resolution Driving IC ST7789 2 1.14 Inch TFT LCD Module SPI 135x240 Resolution Driving IC ST7789 3
Application Fields
  • Wearable Devices - Smartband main displays for HR/SpO₂/activity data; TWS cases for album art and battery status
  • Portable Medical Equipment - Digital thermometers with temp trend graphs; pocket oximeters with real-time waveforms
  • Industrial Controls - Handheld detectors with multi-parameter UI; equipment monitors with error codes
  • Consumer Electronics - Premium e-cigarettes with power statistics; mini game consoles for retro gaming
  • IoT & Payment Terminals - Shared device QR screens; smart locks with keypad UI
Key Advantages
  • Best Cost-Performance ratio
  • Ultra-Low Power consumption
  • Environmental Robustness
1.14 Inch TFT LCD Module SPI 135x240 Resolution Driving IC ST7789 4 1.14 Inch TFT LCD Module SPI 135x240 Resolution Driving IC ST7789 5 1.14 Inch TFT LCD Module SPI 135x240 Resolution Driving IC ST7789 6
Frequently Asked Questions
Can small-sized LCD screens be equipped with touch functions?

Yes. Touch panels can be laminated onto the LCD surface. Available options include:

  • Resistive Touch: Low cost, works with any object, resistant to contaminants but has lower transmittance
  • Capacitive Touch: High transmittance, supports multi-touch, durable glass surface but requires finger input
How long is the lifespan of a small-sized LCD screen?

Lifetime depends on backlight and LCD panel reliability:

  • Backlight Lifetime: 30,000 to 70,000 hours (3.5-8 years continuous use)
  • LCD Panel Lifetime: Typically exceeds 50,000 hours under normal conditions
How long does it usually take for a sample?

Samples are typically dispatched within 3 to 5 days.

How long is the delivery cycle generally?

Delivery time is usually within 20 to 30 days.
