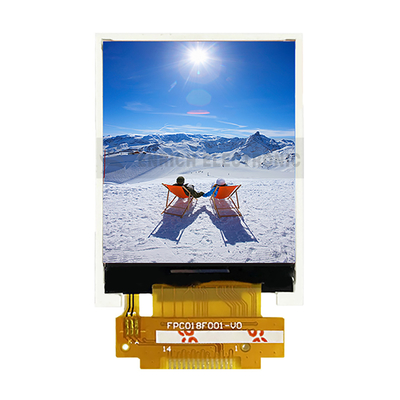

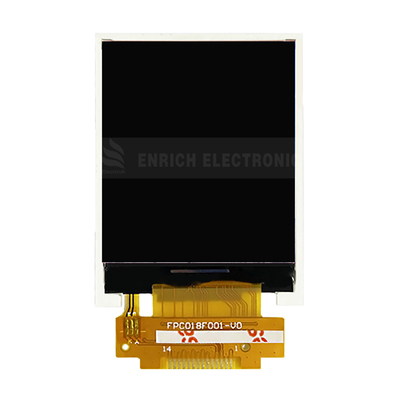

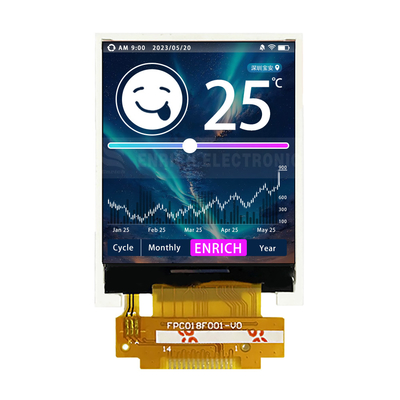

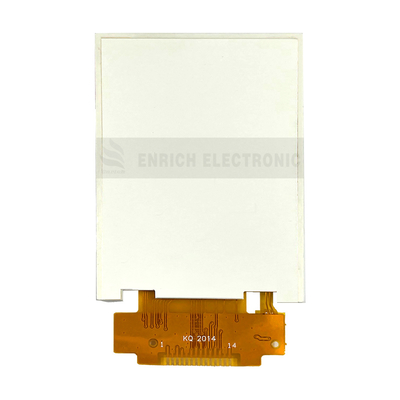

1.77 Inch Tft Lcd Display Panel 128x160 Resolution IC ST7735 Lcd Tft Module

1.77 Inch Tft Lcd Display Panel 128x160 Resolution IC ST7735 Lcd Tft Module

Brand Name: Enrich
Model Number: ENH-TV0018F001
MOQ: 2000 pcs
Price: $1.50-$10.00
Payment Terms: T/T
Detail Information
Place of Origin:
China
Certification:
ISO9001,Rosh
Material:
TFT
LCD Size:
34.7x46.7x2.3 Mm
Interface:
SPI
Viewing Angle:
12 0‘clock
Driving IC:
ST7735S
Resolution:
128x160
Highlight:

1.77 Inch Tft Lcd Display Panel

,

1.77 Inch Lcd Tft Module

,

ST7735 Lcd Tft Module

Product Description
1.77 Inch TFT LCD Module 128x160 Resolution 12 0'clock IC ST7735 TFT LCD
Product Specifications
Attribute Value
Material TFT
LCD Size 34.7x46.7x2.3 mm
Interface SPI
Viewing Angle 12 0'clock
Driving IC ST7735S
Resolution 128x160
Product Overview
1.77 Inch Tft Lcd Display Panel 128x160 Resolution IC ST7735 Lcd Tft Module 0
  • LCD Size: 1.77 Inch
  • Resolution: 128x160
  • Viewing Angle: 12 0'clock
  • Driving IC: ST7735S
  • Interface: SPI
Application Fields
  • Wearable Devices: Status display for smart bands, fitness trackers, and health monitors
  • Portable Instruments: Medical devices (e.g., glucose meters), industrial sensors, handheld dashboards
  • Consumer Electronics: Mini game consoles, electronic toys, portable media players, smart home controllers
  • Embedded Systems: Interface for industrial control equipment, IoT terminals, robot status panels
  • Education/Maker Tools: Expansion displays for Arduino/Raspberry Pi projects in prototyping
Key Advantages
  • Compact & Lightweight
  • Low Power Consumption
  • Cost-Effective
Frequently Asked Questions
Can small-sized LCD screens be equipped with touch functions?

Yes. This is a very common requirement. The touch panel is typically laminated onto the surface of the LCD. Main types:

  • Resistive Touch: Low cost, resistant to surface contaminants (dust, water), works with any object. Lower transmittance, relatively less durable (scratches), usually no multi-touch.
  • Capacitive Touch: High transmittance, sensitive and smooth touch, supports multi-touch, durable (glass surface). Higher cost, requires finger or special stylus, sensitive to water/oil on surface.
How long is the lifespan of a small-sized LCD screen?

Lifetime primarily refers to the Backlight lifespan (usually measured in hours until brightness drops to 50% of initial) and the reliability of the LCD Panel itself.

  • Backlight Lifetime: Common LED backlights typically last 30,000 to 70,000 hours (approx. 3.5 to 8 years of continuous use). High temperatures significantly reduce this.
  • LCD Panel Lifetime: Generally very long, often 50,000 hours or more under normal operating conditions (avoiding physical shock, extreme temperatures, excessive humidity). The screen itself typically does not suffer from "burn-in".
How long does it usually take for a sample?

Samples usually take 3 to 5 days to be dispatched.

How long is the delivery cycle generally?

The delivery time is within 20 to 30 days.
