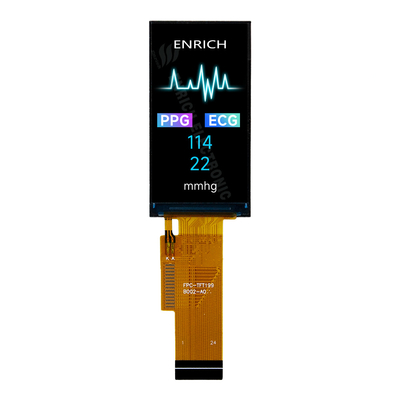

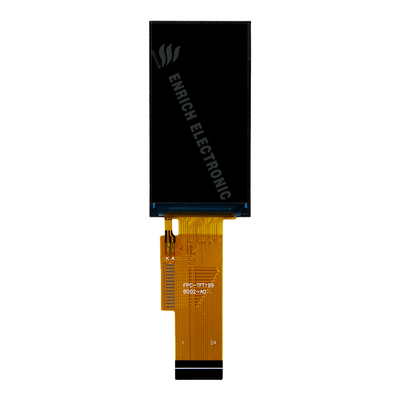

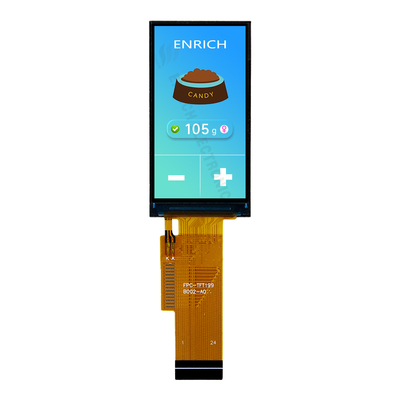

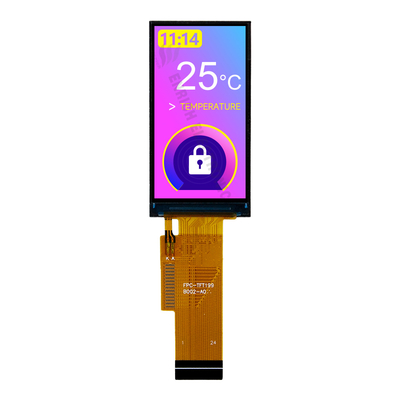

1.99 Inch Tft Lcd Display Screen 170x320 Resolution Custom Tft Display SPI Driving IC NV3030B

1.99 Inch Tft Lcd Display Screen 170x320 Resolution Custom Tft Display SPI Driving IC NV3030B

Brand Name:	Enrich
Model Number:	ENH-TV0199A001
MOQ:	2000
Price:	$1.50-$10.00
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001,Rosh

Material:

TFT

LCD Size:

25.8x49.72x1.4 Mm

Interface:

SPI

Viewing Angle:

IPS

Driving IC:

NV3030B

Resolution:

170x320

Highlight:

1.99 Inch Tft Lcd Display Screen

1.99 Inch Custom Tft Display

170x320 Resolution Tft Lcd Display Screen

Product Description

1.99 Inch TFT LCD Display Screen 170x320 Resolution Custom TFT Display SPI Driving IC NV3030B

Product Specifications

Attribute	Value
Material	TFT
LCD Size	25.8x49.72x1.4 mm
Interface	SPI
Viewing Angle	IPS
Driving IC	NV3030B
Resolution	170x320

Product Description

LCD Size: 1.99 Inch
Resolution: 170x320
Viewing Angle: IPS
Driving IC: NV3030B
Interface: SPI

Application Fields

Wearable Devices
Smartband main displays: HR/SpO₂/activity multi-data view
TWS cases: Album art + precise battery % + multi-pairing status
Portable Medical Equipment
Digital thermometers: Temp trend graph + timeline
Pocket oximeters: Real-time waveform + SpO₂ value
Industrial Controls
Handheld detectors (gas/noise): Multi-parameter table UI
Equipment monitors: Error codes + troubleshooting guides
Consumer Electronics
Premium e-cigarettes: Power/resistance/puff statistics
Mini game consoles: 128×64 pixel retro gaming
IoT & Payment Terminals
Shared device QR screens: Dynamic payment codes + usage time
Smart locks: Keypad UI + doorbell notifications

Key Advantages

Best Cost-Performance
Ultra-Low Power
Environmental Robustness

Frequently Asked Questions

Can small-sized LCD screens be equipped with touch functions?

Yes. This is a very common requirement. The touch panel is typically laminated onto the surface of the LCD. Main types:

Resistive Touch: Low cost, resistant to surface contaminants (dust, water), works with any object. Lower transmittance, relatively less durable (scratches), usually no multi-touch.
Capacitive Touch: High transmittance, sensitive and smooth touch, supports multi-touch, durable (glass surface). Higher cost, requires finger or special stylus, sensitive to water/oil on surface.

How long is the lifespan of a small-sized LCD screen?

Lifetime primarily refers to the Backlight lifespan (usually measured in hours until brightness drops to 50% of initial) and the reliability of the LCD Panel itself.

Backlight Lifetime: Common LED backlights typically last 30,000 to 70,000 hours (approx. 3.5 to 8 years of continuous use). High temperatures significantly reduce this.
LCD Panel Lifetime: Generally very long, often 50,000 hours or more under normal operating conditions (avoiding physical shock, extreme temperatures, excessive humidity). The screen itself typically does not suffer from "burn-in".

How long does it usually take for a sample?

Samples usually take 3 to 5 days to be dispatched.

How long is the delivery cycle generally?

The delivery time is within 20 to 30 days.
