High Performance Tft Lcd Spi Tft Color Lcd Module 240x320 Resolution MCU IC ST7789

High Performance Tft Lcd Spi Tft Color Lcd Module 240x320 Resolution MCU IC ST7789

Brand Name: Enrich
Model Number: ENH-TV0280010A
MOQ: 2000 pcs
Price: $1.50-$10.00
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
ISO9001,Rosh
Material:
TFT
LCD Size:
50x69x2.45 Mm
Interface:
MCU
Viewing Angle:
12 0'clock
Driving IC:
ST7789
Resolution:
240x320
Highlight:

High Performance Tft Lcd Spi

,

High Performance Tft Color Lcd Module

,

240x320 Resolution Tft Lcd Spi

Product Description
2.8 Inch TFT LCD Module 240x320 Resolution MCU IC ST7789 TFT LCD
Product Specifications
Attribute Value
Material TFT
LCD Size 50x69x2.45 mm
Interface MCU
Viewing Angle 12 0'clock
Driving IC ST7789
Resolution 240x320
Product Overview

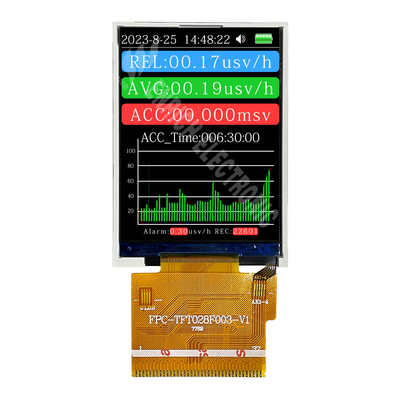

High Performance Tft Lcd Spi Tft Color Lcd Module 240x320 Resolution MCU IC ST7789 0
  • LCD Size: 2.8 Inch
  • Resolution: 240x320
  • Viewing Angle: 12 0'clock
  • Driving IC: ST7789
  • Interface: MCU

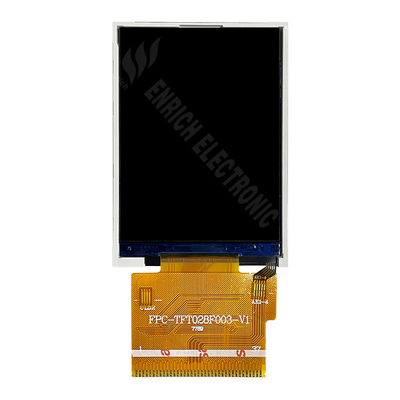

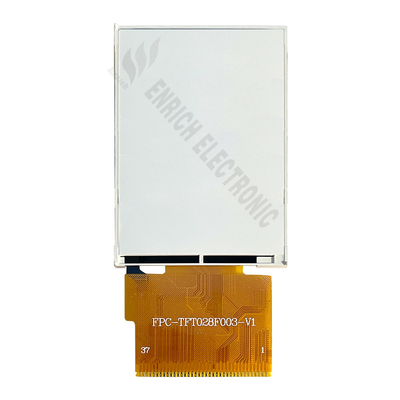

High Performance Tft Lcd Spi Tft Color Lcd Module 240x320 Resolution MCU IC ST7789 1 High Performance Tft Lcd Spi Tft Color Lcd Module 240x320 Resolution MCU IC ST7789 2 High Performance Tft Lcd Spi Tft Color Lcd Module 240x320 Resolution MCU IC ST7789 3
Application Fields
  • Industrial Control Systems: HMI for PLCs, motor control panels, multi-parameter instrument displays
  • Portable Medical Equipment: Handheld ultrasound displays, vital sign monitors, endoscope imaging units
  • Automotive Electronics: Rearview mirror displays, OBD scanners, motorcycle navigation systems (IP65 rated)
  • Smart Home Hub: IoT control dashboards, video intercom displays for access control
  • Consumer Electronics: Retro gaming handhelds, mobile payment terminals, portable media players
Key Advantages
  • Premium Display Performance
  • All-Scenario Visibility
  • Multi-Interface Flexibility
High Performance Tft Lcd Spi Tft Color Lcd Module 240x320 Resolution MCU IC ST7789 4 High Performance Tft Lcd Spi Tft Color Lcd Module 240x320 Resolution MCU IC ST7789 5 High Performance Tft Lcd Spi Tft Color Lcd Module 240x320 Resolution MCU IC ST7789 6
Frequently Asked Questions
Can small-sized LCD screens be equipped with touch functions?

Yes. This is a very common requirement. The touch panel is typically laminated onto the surface of the LCD. Main types:

  • Resistive Touch: Low cost, resistant to surface contaminants (dust, water), works with any object. Lower transmittance, relatively less durable (scratches), usually no multi-touch.
  • Capacitive Touch: High transmittance, sensitive and smooth touch, supports multi-touch, durable (glass surface). Higher cost, requires finger or special stylus, sensitive to water/oil on surface.
How long is the lifespan of a small-sized LCD screen?

Lifetime primarily refers to the Backlight lifespan (usually measured in hours until brightness drops to 50% of initial) and the reliability of the LCD Panel itself.

  • Backlight Lifetime: Common LED backlights typically last 30,000 to 70,000 hours (approx. 3.5 to 8 years of continuous use). High temperatures significantly reduce this.
  • LCD Panel Lifetime: Generally very long, often 50,000 hours or more under normal operating conditions (avoiding physical shock, extreme temperatures, excessive humidity). The screen itself typically does not suffer from "burn-in".
How long does it usually take for a sample?

Samples usually take 3 to 5 days to be dispatched.

How long is the delivery cycle generally?

The delivery time is within 20 to 30 days.
