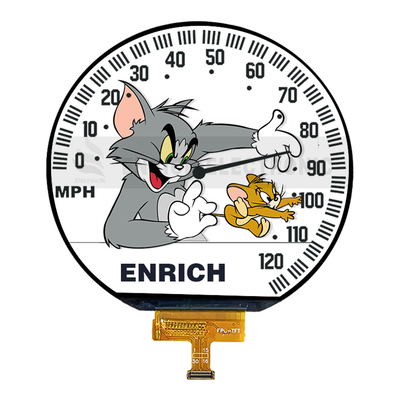

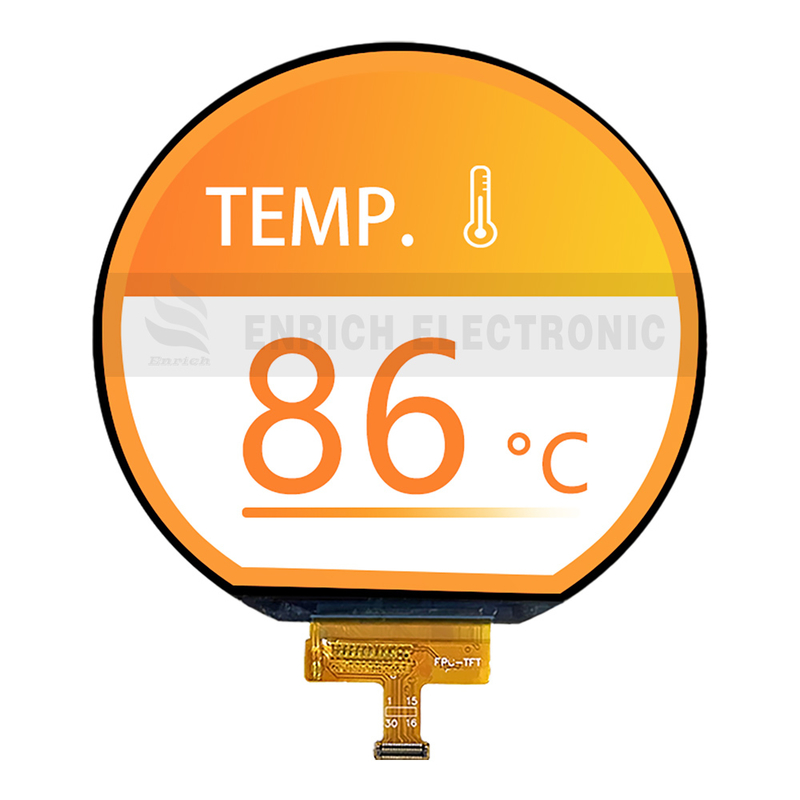

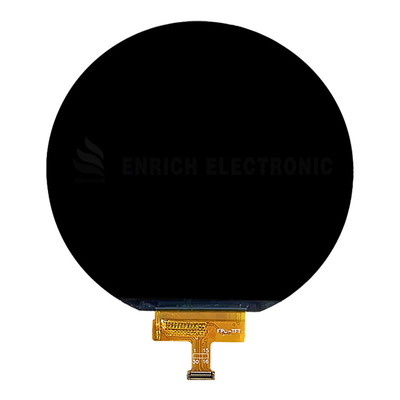

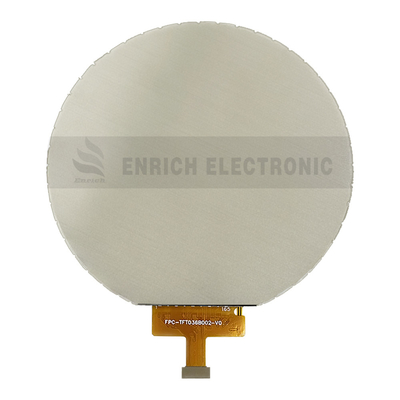

3.6 Inch Circular TFT LCD Display 544x506 Resolution IC ST72566 LVDS

3.6 Inch Circular TFT LCD Display 544x506 Resolution IC ST72566 LVDS

Brand Name:	Enrich
Model Number:	ENH-TV00036001
MOQ:	2000 pcs
Price:	$1.50-$10.00
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001,Rosh

Material:

TFT

LCD Size:

91.81x95.46x2.3 Mm

Interface:

LVDS

Viewing Angle:

IPS

Driving IC:

ST72566

Resolution:

544x506

Highlight:

3.6 Inch Circular TFT LCD Display

3.6 Inch circle lcd screen

ST72566 Circular TFT LCD Display

Product Description

3.6 Inch Circular TFT LCD Display 544×506 Resolution IC ST72566 LVDS TFT LCD Module

Product Specifications

Attribute	Value
Material	TFT
LCD Size	91.81×95.46×2.3 mm
Interface	LVDS
Viewing Angle	IPS
Driving IC	ST72566
Resolution	544×506

Product Overview

LCD Size: 3.6 Inch
Resolution: 544×506
Viewing Angle: IPS
Driving IC: ST72566
Interface: LVDS

Application Fields

Premium Wearables: Circular smartwatches (e.g., Garmin Fenix), military-grade bands, IP68-rated health monitors
Industrial Dashboards: Digital pressure gauges, motor RPM displays, energy meter indicators (360° readability)
Automotive Systems: Retro-style instrument clusters, motorcycle tachometers, steering wheel control panels
Medical Devices: Portable ECG monitors, blood analyzers with radial data visualization
Smart Home Controllers: Round thermostats, artistic control hubs (aesthetic-function integration)

Key Advantages

Form-Factor Innovation
Advanced Display Architecture
Military-Grade Durability
Energy Revolution
Developer Ecosystem

Frequently Asked Questions

Can small-sized LCD screens be equipped with touch functions?

Yes. This is a very common requirement. The touch panel is typically laminated onto the surface of the LCD. Main types:

Resistive Touch: Low cost, resistant to surface contaminants (dust, water), works with any object. Lower transmittance, relatively less durable (scratches), usually no multi-touch.
Capacitive Touch: High transmittance, sensitive and smooth touch, supports multi-touch, durable (glass surface). Higher cost, requires finger or special stylus, sensitive to water/oil on surface.

How long is the lifespan of a small-sized LCD screen?

Lifetime primarily refers to the Backlight lifespan (usually measured in hours until brightness drops to 50% of initial) and the reliability of the LCD Panel itself.

Backlight Lifetime: Common LED backlights typically last 30,000 to 70,000 hours (approx. 3.5 to 8 years of continuous use). High temperatures significantly reduce this.
LCD Panel Lifetime: Generally very long, often 50,000 hours or more under normal operating conditions (avoiding physical shock, extreme temperatures, excessive humidity). The screen itself typically does not suffer from "burn-in".

How long does it usually take for a sample?

Samples usually take 3 to 5 days to be dispatched.

How long is the delivery cycle generally?

The delivery time is within 20 to 30 days.
