2.4 Inch 128x64 Dot Matrix Lcd Module Dot Matrix Lcd Screen ST7567 Drive IC

2.4 Inch 128x64 Dot Matrix Lcd Module Dot Matrix Lcd Screen ST7567 Drive IC

Model Number: ENH-DG128064-148
Price: $1.50-$10.00
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
Rohs，ISO9001
Size:
2.4 Inch
Display Mode:
FSTN/Transflective/Negative
Viewing Angle:
6 0'clock
Drive IC:
ST7567
Highlight:

2.4 Inch Dot Matrix Lcd Module

,

2.4 Inch Dot Matrix Lcd Screen

,

128x64 Dot Matrix Lcd Module

Product Description
2.4 Inch 128x64 Graphic LCD Display FSTN Positive COG Monochrome LCD Display Module
Attribute Value
Size 2.4 Inch
Display Mode FSTN/Transflective/Negative
Viewing Angle 6 0'clock
Drive IC ST7567

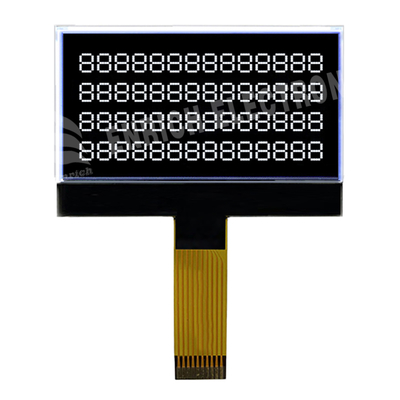

2.4 Inch 128x64 Dot Matrix Lcd Module Dot Matrix Lcd Screen ST7567 Drive IC 0
Technical Specifications
  • Display Mode: FSTN/Transflective/Negative
  • Viewing Angle: 6 0'clock
  • Drive Method: 1/64 Duty, 1/7Bias
  • Operating Temperature: -10°C to +60°C
  • Storage Temperature: -20°C to +70°C
  • Connector: COG+FPC
  • Drive IC: ST7567

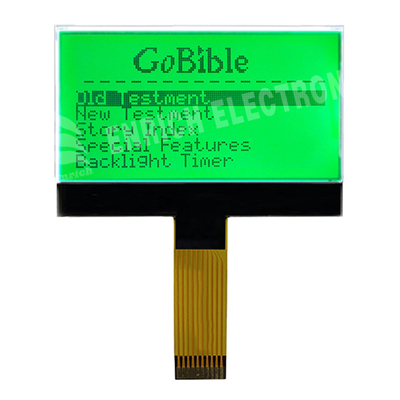

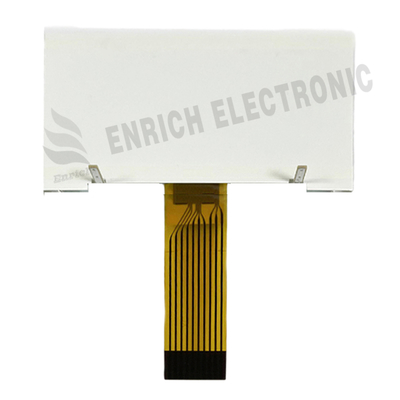

2.4 Inch 128x64 Dot Matrix Lcd Module Dot Matrix Lcd Screen ST7567 Drive IC 1 2.4 Inch 128x64 Dot Matrix Lcd Module Dot Matrix Lcd Screen ST7567 Drive IC 2
Primary Application Areas
Industrial Control
  • Equipment status display
  • Instrumentation panels
Consumer Electronics
  • Portable device displays
  • Home appliance interfaces
Medical Devices
  • Portable medical instruments
  • Basic diagnostic devices
Transportation Systems
  • Shared device lock screens
  • In-vehicle information terminals
Retail & Payment
  • POS systems
  • Electronic shelf labels
Communication Devices
  • Walkie-talkie status screens
  • Network equipment indicators

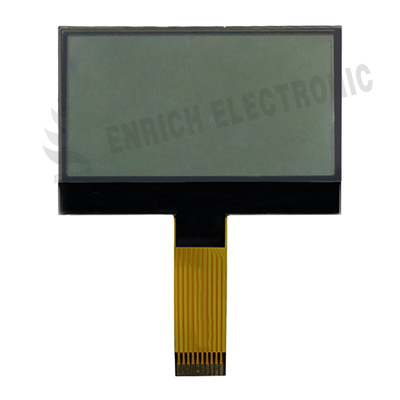

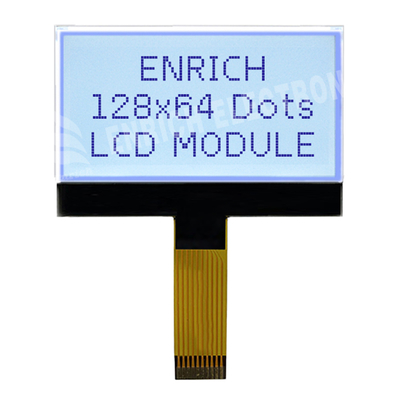

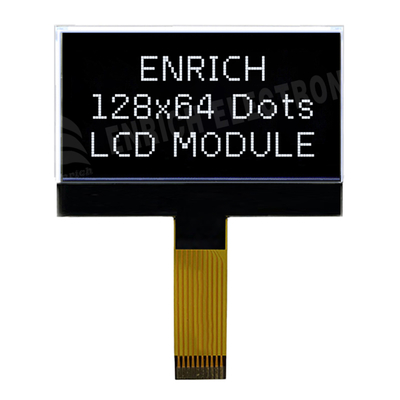

2.4 Inch 128x64 Dot Matrix Lcd Module Dot Matrix Lcd Screen ST7567 Drive IC 3 2.4 Inch 128x64 Dot Matrix Lcd Module Dot Matrix Lcd Screen ST7567 Drive IC 4 2.4 Inch 128x64 Dot Matrix Lcd Module Dot Matrix Lcd Screen ST7567 Drive IC 5
Frequently Asked Questions
Can small-sized LCD screens be equipped with touch functions?

Yes. This is a very common requirement. The touch panel is typically laminated onto the surface of the LCD. Main types:

  • Resistive Touch: Low cost, resistant to surface contaminants (dust, water), works with any object. Lower transmittance, relatively less durable (scratches), usually no multi-touch.
  • Capacitive Touch: High transmittance, sensitive and smooth touch, supports multi-touch, durable (glass surface). Higher cost, requires finger or special stylus, sensitive to water/oil on surface.
How long is the lifespan of a small-sized LCD screen?

Lifetime primarily refers to the Backlight lifespan (usually measured in hours until brightness drops to 50% of initial) and the reliability of the LCD Panel itself.

  • Backlight Lifetime: Common LED backlights typically last 30,000 to 70,000 hours (approx. 3.5 to 8 years of continuous use). High temperatures significantly reduce this.
  • LCD Panel Lifetime: Generally very long, often 50,000 hours or more under normal operating conditions (avoiding physical shock, extreme temperatures, excessive humidity). The screen itself typically does not suffer from "burn-in".
How long does it usually take for a sample?

Samples usually take 3 to 5 days to be dispatched.

How long is the delivery cycle generally?

The delivery time is within 20 to 30 days.
