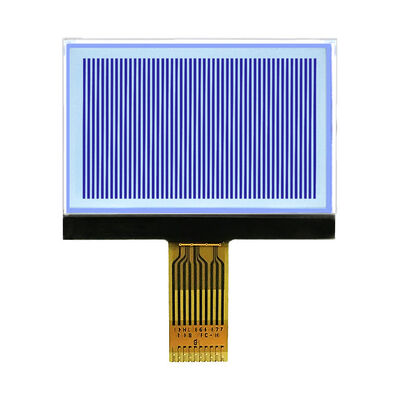

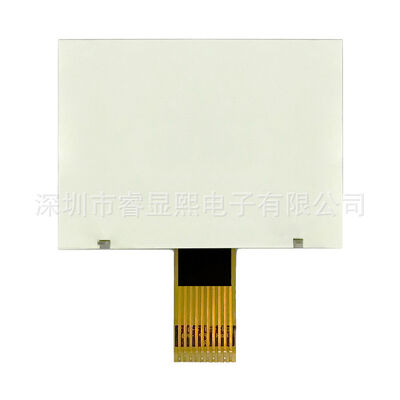

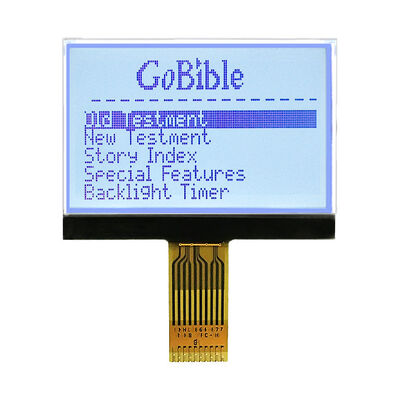

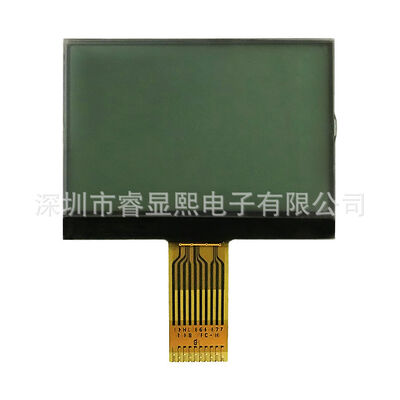

2.2 Inch 128x64 Dots ST7567 Drive IC Dot Matrix LCD Display Graphic LCD Module

2.2 Inch 128x64 Dots ST7567 Drive IC Dot Matrix LCD Display Graphic LCD Module

Model Number:	ENH-DG128064-149
Price:	$1.50-$10.00
Payment Terms:	T/T

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Certification:

Rohs，ISO9001

Size:

2.2 Inch

Display Mode:

FSTN/Transflective/Positive

Viewing Angle:

6 0'clock

Drive IC:

ST7567

Highlight:

2.2 Inch Dot Matrix LCD Display

128x64 Dots Graphic LCD Module

ST7567 Drive IC LCD Screen

Product Description

2.2 Inch 128x64 Dots Matrix LCD Display ST7567 Graphic LCD Module

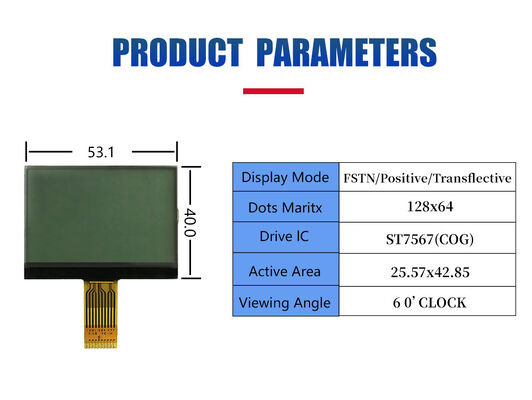

Technical Specifications

Display Mode: FSTN/Transflective/Positive

Viewing Angle: 6 o'clock

Drive Method: 1/65 Duty, 1/9 Bias

Operating Temperature: -10°C to +60°C

Storage Temperature: -20°C to +70°C

Connector: COG + FPC

Drive IC: ST7567

Primary Application Areas

Industrial Control

Equipment status display
Instrumentation panels

Consumer Electronics

Portable device displays
Home appliance interfaces

Medical Devices

Portable medical instruments
Basic diagnostic devices

Transportation Systems

Shared device lock screens
In-vehicle information terminals

Retail & Payment

POS systems
Electronic shelf labels

Communication Devices

Walkie-talkie status screens
Network equipment indicators

Frequently Asked Questions

Can small-sized LCD screens be equipped with touch functions?

Yes, this is a very common requirement. The touch panel is typically laminated onto the surface of the LCD. Main types include:

Resistive Touch: Low cost, resistant to surface contaminants (dust, water), works with any object. Lower transmittance, relatively less durable (scratches), usually no multi-touch.

Capacitive Touch: High transmittance, sensitive and smooth touch, supports multi-touch, durable (glass surface). Higher cost, requires finger or special stylus, sensitive to water/oil on surface.

How long is the lifespan of a small-sized LCD screen?

Lifetime primarily refers to the backlight lifespan (usually measured in hours until brightness drops to 50% of initial) and the reliability of the LCD panel itself.

Backlight Lifetime: Common LED backlights typically last 30,000 to 70,000 hours (approximately 3.5 to 8 years of continuous use). High temperatures significantly reduce this.

LCD Panel Lifetime: Generally very long, often 50,000 hours or more under normal operating conditions (avoiding physical shock, extreme temperatures, excessive humidity). The screen itself typically does not suffer from "burn-in".

How long does it usually take for a sample?

Samples usually take 3 to 5 days to be dispatched.

How long is the delivery cycle generally?

The delivery time is within 20 to 30 days.
