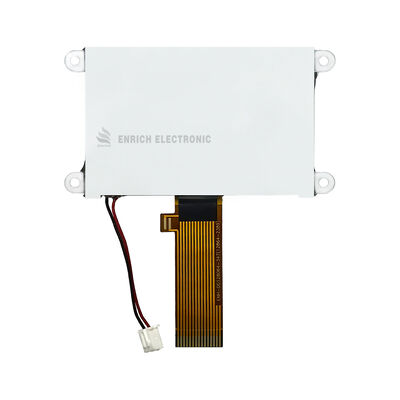

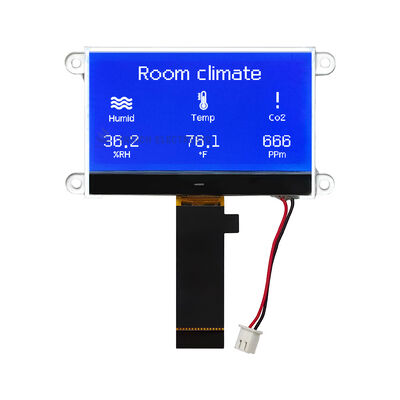

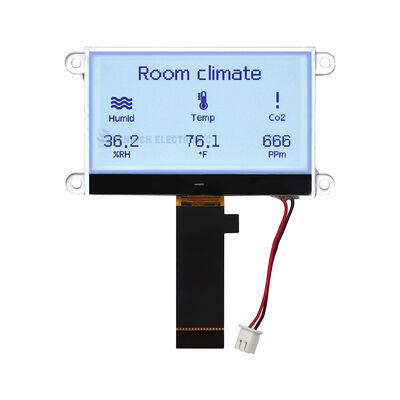

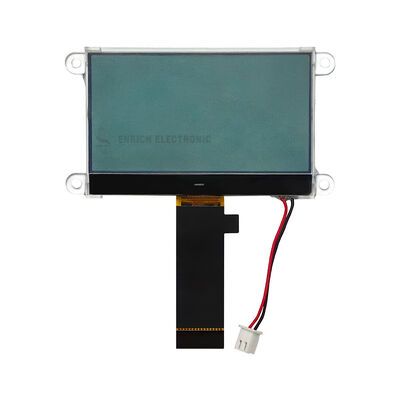

3.5 Inch 128x64 Dot Matrix LCD Module with ST7567 Drive IC for Industrial and Consumer Electronics

3.5 Inch 128x64 Dot Matrix LCD Module with ST7567 Drive IC for Industrial and Consumer Electronics

Model Number:	ENH-DG128064-347
Price:	$1.50-$10.00
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs，ISO9001

Size:

3.5 Inch

Display Mode:

FSTN/Transflective/Positive

Viewing Angle:

6 0'clock

Drive IC:

ST7567

Highlight:

128x64 Dot Matrix LCD Module

3.5 Inch Dot Matrix LCD Display

ST7567 Drive IC Graphic LCD Module

Product Description

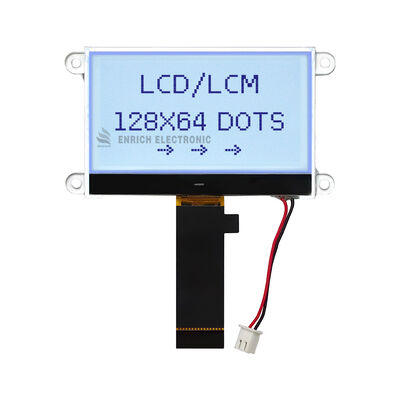

Enrich LCD Screen 128x64 Dot Matrix Module

Technical Specifications

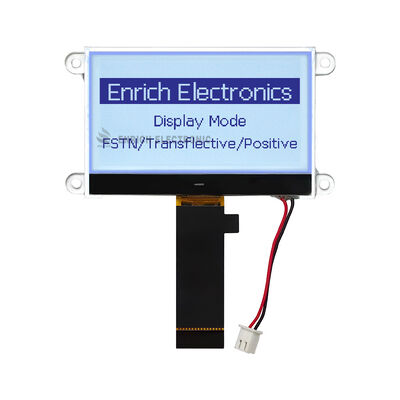

Display Mode: FSTN/Transflective/Positive
Viewing Angle: 6 o'clock
Drive Method: 1/65 Duty, 1/9 Bias
Operating Temperature: -10°C to +60°C
Storage Temperature: -20°C to +70°C
Connector: COG + FPC
Drive IC: ST7567

Primary Application Areas

Industrial Control

Equipment status display, Instrumentation panels

Consumer Electronics

Portable device displays, Home appliance interfaces

Medical Devices

Portable medical instruments, Basic diagnostic devices

Transportation Systems

Shared device lock screens, In-vehicle information terminals

Retail & Payment

POS systems, Electronic shelf labels

Communication Devices

Walkie-talkie status screens, Network equipment indicators

Frequently Asked Questions

Can small-sized LCD screens be equipped with touch functions?

Yes, this is a very common requirement. The touch panel is typically laminated onto the surface of the LCD. Main types include:

Resistive Touch: Low cost, resistant to surface contaminants (dust, water), works with any object. Lower transmittance, relatively less durable (scratches), usually no multi-touch.

Capacitive Touch: High transmittance, sensitive and smooth touch, supports multi-touch, durable (glass surface). Higher cost, requires finger or special stylus, sensitive to water/oil on surface.

How long is the lifespan of a small-sized LCD screen?

Lifetime primarily refers to the Backlight lifespan (usually measured in hours until brightness drops to 50% of initial) and the reliability of the LCD Panel itself.

Backlight Lifetime: Common LED backlights typically last 30,000 to 70,000 hours (approximately 3.5 to 8 years of continuous use). High temperatures significantly reduce this.

LCD Panel Lifetime: Generally very long, often 50,000 hours or more under normal operating conditions (avoiding physical shock, extreme temperatures, excessive humidity). The screen itself typically does not suffer from "burn-in".

How long does it usually take for a sample?

Samples usually take 3 to 5 days to be dispatched.

How long is the delivery cycle generally?

The delivery time is within 20 to 30 days.
