1.3 Inch Dot Matrix LCD Display with ST7567 Drive IC and FSTN/Transflective/Positive Viewing Mode

1.3 Inch Dot Matrix LCD Display with ST7567 Drive IC and FSTN/Transflective/Positive Viewing Mode

Model Number:	ENH-DG132032-03
Price:	$1.50-$10.00
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs，ISO9001

Size:

1.3 Inch

Display Mode:

FSTN/Transflective/Positive

Viewing Angle:

12 0'clock

Drive IC:

ST7567

Highlight:

1.3 Inch Dot Matrix LCD Display

ST7567 Drive IC Graphic LCD Module

FSTN/Transflective/Positive LCD Screen

Product Description

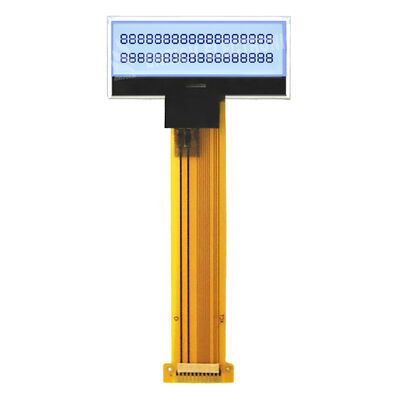

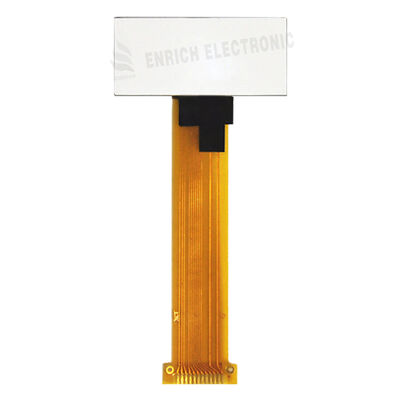

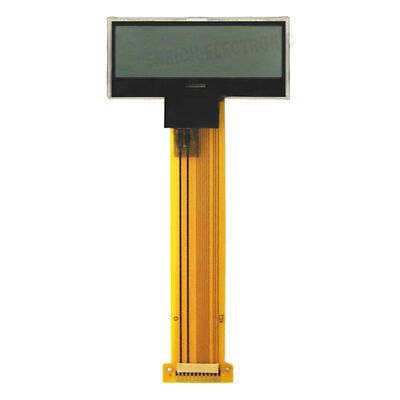

1.3 Inch 132x32 Dot Matrix LCD Display Screen

High-resolution 132x32 dot matrix LCD display with long ribbon cable, designed for reliable performance in various electronic applications.

Technical Specifications

Display Mode: FSTN/Transflective/Positive

Viewing Angle: 12 o'clock

Drive Method: 1/32 Duty, 1/6 Bias

Operating Temperature: -10°C to +60°C

Storage Temperature: -20°C to +70°C

Connector: COG + FPC

Drive IC: ST7567

Primary Application Areas

Industrial Control

Equipment status display, Instrumentation panels

Consumer Electronics

Portable device displays, Home appliance interfaces

Medical Devices

Portable medical instruments, Basic diagnostic devices

Transportation Systems

Shared device lock screens, In-vehicle information terminals

Retail & Payment

POS systems, Electronic shelf labels

Communication Devices

Walkie-talkie status screens, Network equipment indicators

Frequently Asked Questions

Can small-sized LCD screens be equipped with touch functions?

Yes, touch functionality is a common requirement. The touch panel is typically laminated onto the LCD surface. Main options include:

Resistive Touch: Low cost, resistant to dust and water, works with any object. Lower light transmittance and less durable surface.

Capacitive Touch: High transmittance, sensitive touch response, supports multi-touch, durable glass surface. Higher cost and requires finger or special stylus.

How long is the lifespan of a small-sized LCD screen?

Lifetime depends on backlight and LCD panel reliability:

Backlight Lifetime: LED backlights typically last 30,000 to 70,000 hours (approximately 3.5 to 8 years of continuous use). High temperatures reduce lifespan.

LCD Panel Lifetime: Generally exceeds 50,000 hours under normal operating conditions. Screens do not typically suffer from burn-in effects.

How long does it usually take for a sample?

Samples are typically dispatched within 3 to 5 days.

How long is the delivery cycle generally?

Standard delivery time is 20 to 30 days.
