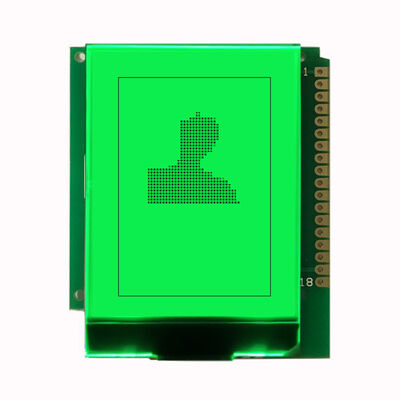

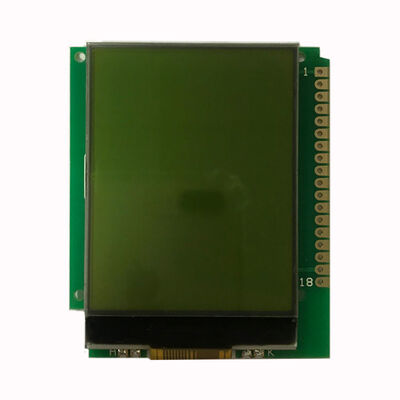

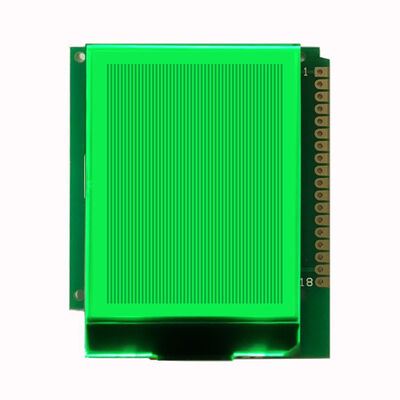

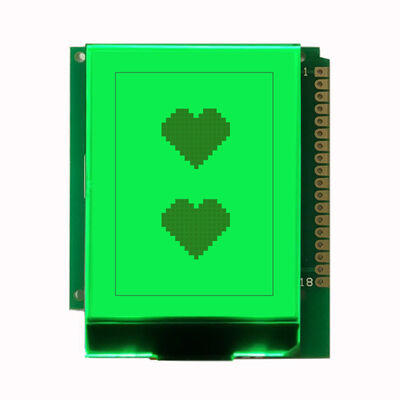

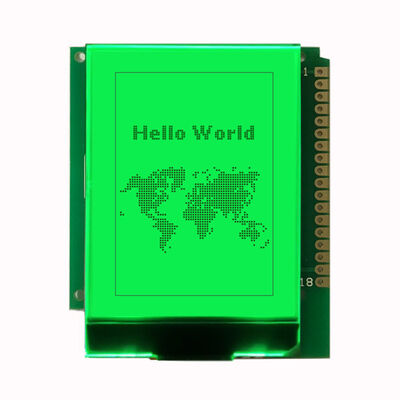

2.5 Inch 128x96 Resolution STN Yellow Green Dot Matrix LCD Display Module with COG Technology

2.5 Inch 128x96 Resolution STN Yellow Green Dot Matrix LCD Display Module with COG Technology

Brand Name: Enrich
Model Number: ENH-DG128096-04
Price: $1.50-$10.00
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
Rohs，ISO9001
Size:
2.5 Inch
Display Mode:
STN/Transflective/Positive
Viewing Angle:
6 0'clock
Drive IC:
ST7571
Highlight:

2.5 Inch LCD Display Module

,

128x96 Resolution Dot Matrix LCD

,

STN Yellow Green Graphic LCD Display

Product Description
2.5 Inch LCD Display Module 128x96 STN Yellow Green COG
Technical Specifications
Display Mode: STN/Yellow Green/Transflective/Positive
Viewing Angle: 6 o'clock
Drive Method: 1/128 Duty, 1/9 Bias, Vop=10.2V, Vdd=3.3V
Operating Temperature: -20°C to +70°C
Storage Temperature: -30°C to +80°C

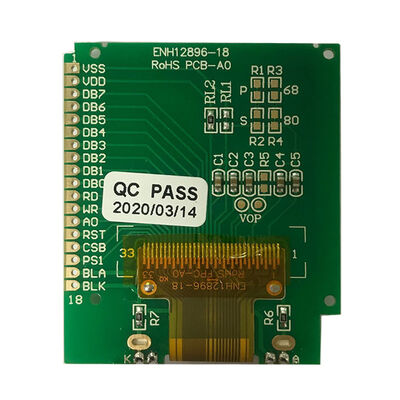

Connector: COG + FPC
Drive IC: ST7571
2.5 Inch 128x96 Resolution STN Yellow Green Dot Matrix LCD Display Module with COG Technology 0 2.5 Inch 128x96 Resolution STN Yellow Green Dot Matrix LCD Display Module with COG Technology 1
Primary Application Areas
Industrial Control
  • Equipment status display
  • Instrumentation panels
Consumer Electronics
  • Portable device displays
  • Home appliance interfaces
Medical Devices
  • Portable medical instruments
  • Basic diagnostic devices
Transportation Systems
  • Shared device lock screens
  • In-vehicle information terminals
Retail & Payment
  • POS systems
  • Electronic shelf labels
Communication Devices
  • Walkie-talkie status screens
  • Network equipment indicators
