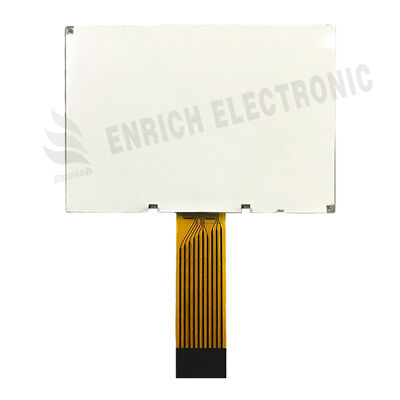

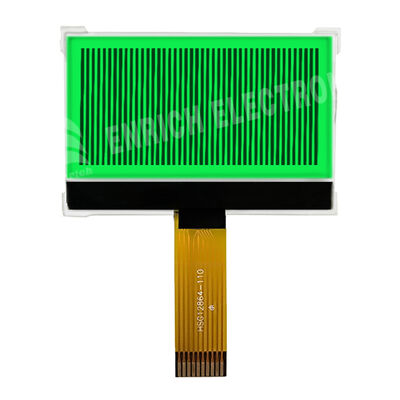

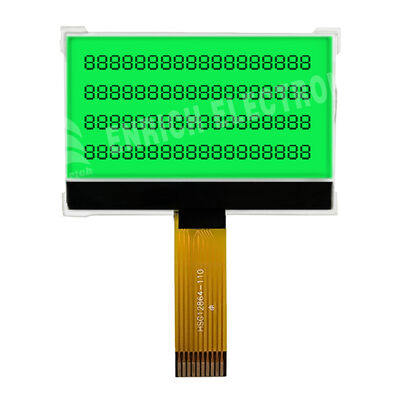

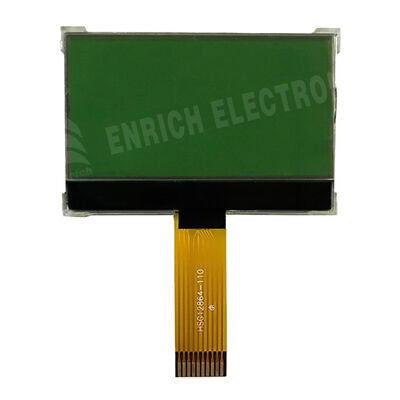

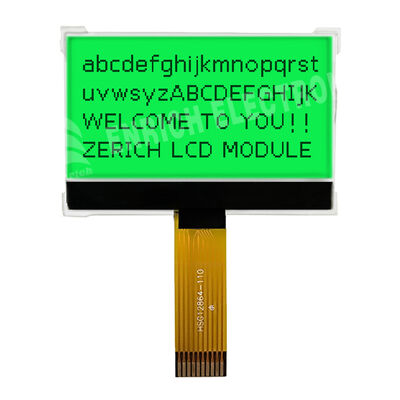

2.4 Inch 128x64 Resolution Dot Matrix LCD Module with ST7567 Drive IC for Industrial and Consumer Electronics

2.4 Inch 128x64 Resolution Dot Matrix LCD Module with ST7567 Drive IC for Industrial and Consumer Electronics

Model Number:	ENH-DG128064-73
Price:	$1.50-$10.00
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs，ISO9001

Size:

2.4 Inch

Display Mode:

STN/Transflective/Positive

Viewing Angle:

6 0'clock

Drive IC:

ST7567

Highlight:

2.4 Inch Dot Matrix LCD Module

128x64 Resolution LCD Display Module

ST7567 Drive IC Graphic LCD Module

Product Description

2.4 Inch 12864 LCD Dot Matrix Module

High-quality yellow-green film LCD module featuring serial and parallel port interfaces, designed for telephony applications and industrial displays.

Technical Specifications

Display Mode: STN (Yellow-Green) / Transflective / Positive
Viewing Angle: 6 o'clock
Drive Method: 1/64 Duty, 1/7 Bias
Operating Temperature: -10°C to +60°C
Storage Temperature: -20°C to +70°C
Connector: COG + FPC
Drive IC: ST7567

Primary Application Areas

Industrial Control

Equipment status display, Instrumentation panels

Consumer Electronics

Portable device displays, Home appliance interfaces

Medical Devices

Portable medical instruments, Basic diagnostic devices

Transportation Systems

Shared device lock screens, In-vehicle information terminals

Retail & Payment

POS systems, Electronic shelf labels

Communication Devices

Walkie-talkie status screens, Network equipment indicators

Frequently Asked Questions

Can small-sized LCD screens be equipped with touch functions?

Yes, this is a very common requirement. The touch panel is typically laminated onto the surface of the LCD. Main types include:

Type	Advantages	Limitations
Resistive Touch	Low cost, resistant to surface contaminants, works with any object	Lower transmittance, less durable, usually no multi-touch
Capacitive Touch	High transmittance, sensitive and smooth touch, supports multi-touch, durable	Higher cost, requires finger or special stylus, sensitive to water/oil

How long is the lifespan of a small-sized LCD screen?

Lifetime primarily refers to the backlight lifespan and LCD panel reliability:

Backlight Lifetime: 30,000 to 70,000 hours (approx. 3.5 to 8 years of continuous use)
LCD Panel Lifetime: 50,000+ hours under normal operating conditions
Note: High temperatures significantly reduce lifespan. The screen itself typically does not suffer from "burn-in".

How long does it usually take for a sample?

Samples are typically dispatched within 3 to 5 days.

How long is the delivery cycle generally?

Standard delivery time is within 20 to 30 days.
