1.2 Inch COG LCD Display with ST7567A Drive IC and FSTN/Transflective/Positive Dot Matrix LCD Module

1.2 Inch COG LCD Display with ST7567A Drive IC and FSTN/Transflective/Positive Dot Matrix LCD Module

Brand Name: Enrich
Model Number: ENH-DG128064-110
Price: $1.50-$10.00
Payment Terms: T/T
Detail Information
Place of Origin:
China
Certification:
Rohs,ISO9001
Size:
1.2 Inch
Display Mode:
FSTN/Transflective/Positive
Viewing Angle:
6 0'clock
Drive IC:
ST7567A
Highlight:

1.2 Inch COG LCD Display

,

ST7567A Drive IC Dot Matrix LCD Display

,

FSTN/Transflective/Positive Graphic LCD Module

Product Description
1.2 Inch COG LCD Display Solution 12864 ST7567 For Feeding Equipment

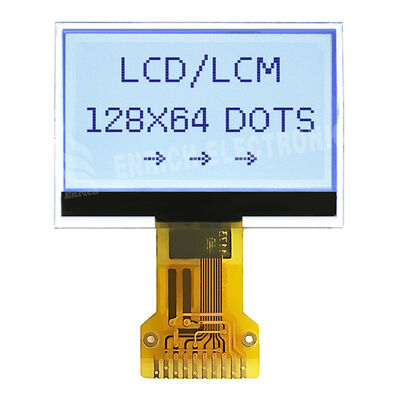

1.2 Inch COG LCD Display with ST7567A Drive IC and FSTN/Transflective/Positive Dot Matrix LCD Module 0
Technical Specifications
Display Mode FSTN/Transflective/Positive
Viewing Angle 6 o'clock
Drive Method 1/64 Duty, 1/9 Bias, Vop=8.7V, Vdd=3.0V
Operating Temperature -20°C to +70°C
Storage Temperature -30°C to +80°C
Connector Type COG + FPC
Drive IC ST7567A

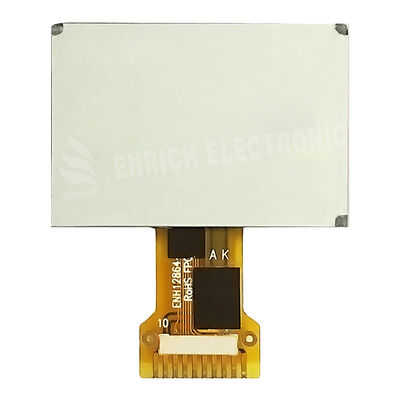

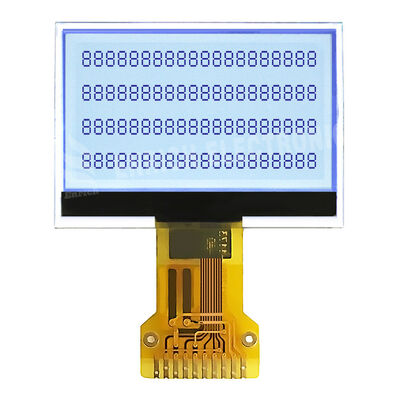

1.2 Inch COG LCD Display with ST7567A Drive IC and FSTN/Transflective/Positive Dot Matrix LCD Module 1 1.2 Inch COG LCD Display with ST7567A Drive IC and FSTN/Transflective/Positive Dot Matrix LCD Module 2
Primary Application Areas
Industrial Control
  • Equipment status display
  • Instrumentation panels
Consumer Electronics
  • Portable device displays
  • Home appliance interfaces
Medical Devices
  • Portable medical instruments
  • Basic diagnostic devices
Transportation Systems
  • Shared device lock screens
  • In-vehicle information terminals
Retail & Payment
  • POS systems
  • Electronic shelf labels
Communication Devices
  • Walkie-talkie status screens
  • Network equipment indicators
