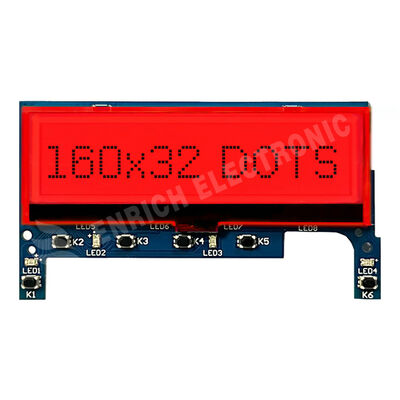

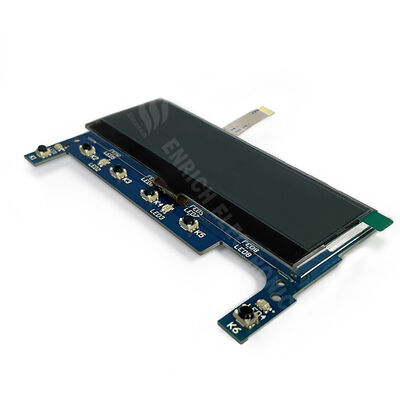

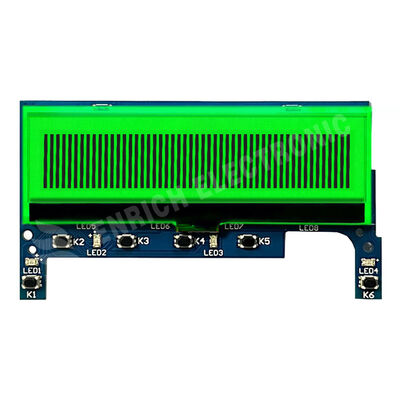

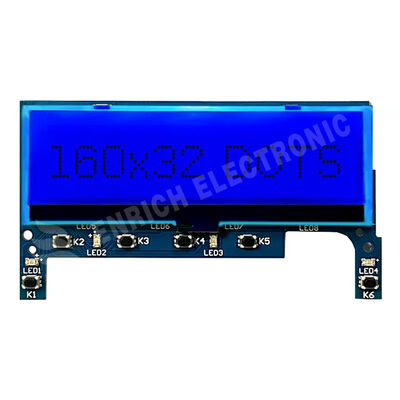

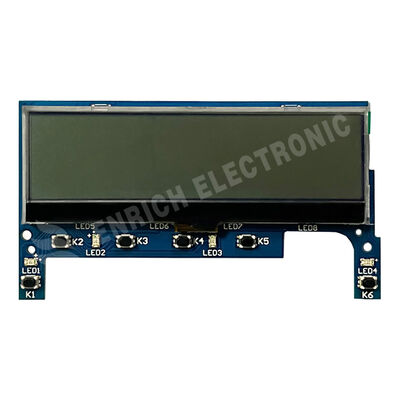

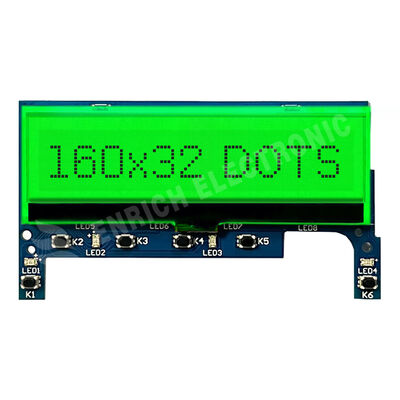

1.2 Inch FSTN/Transflective/Positive Dot Matrix LCD Display with ST7567A Drive IC COG LCD Screen

1.2 Inch FSTN/Transflective/Positive Dot Matrix LCD Display with ST7567A Drive IC COG LCD Screen

Brand Name:	Enrich
Model Number:	ENH-DG160032-03
Price:	$1.50-$10.00
Payment Terms:	T/T

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Certification:

Rohs，ISO9001

Size:

1.2 Inch

Display Mode:

FSTN/Transflective/Positive

Viewing Angle:

6 0'clock

Drive IC:

ST7525

Highlight:

1.2 Inch Dot Matrix LCD Display

FSTN/Transflective/Positive Graphic LCD Module

ST7567A Drive IC COG LCD Screen

Product Description

RGB Backlight Industrial LCD Module 160x32 Dot Matrix COG Monochrome Display

High-performance monochrome LCD module featuring 160x32 dot matrix resolution with RGB backlight and COG technology for industrial applications.

Technical Specifications

Parameter	Specification
Display Mode	FSTN/Transflective/Positive
Viewing Angle	6 o'clock
Drive Method	1/32 Duty, 1/6 Bias, Vop=7V, Vdd=5.0V
Operating Temperature	-20°C to +70°C
Storage Temperature	-30°C to +80°C
Connector	COG + FPC
Drive IC	ST7567A

Primary Application Areas

Industrial Control

Equipment status display
Instrumentation panels

Consumer Electronics

Portable device displays
Home appliance interfaces

Medical Devices

Portable medical instruments
Basic diagnostic devices

Transportation Systems

Shared device lock screens
In-vehicle information terminals

Retail & Payment

POS systems
Electronic shelf labels

Communication Devices

Walkie-talkie status screens
Network equipment indicators
