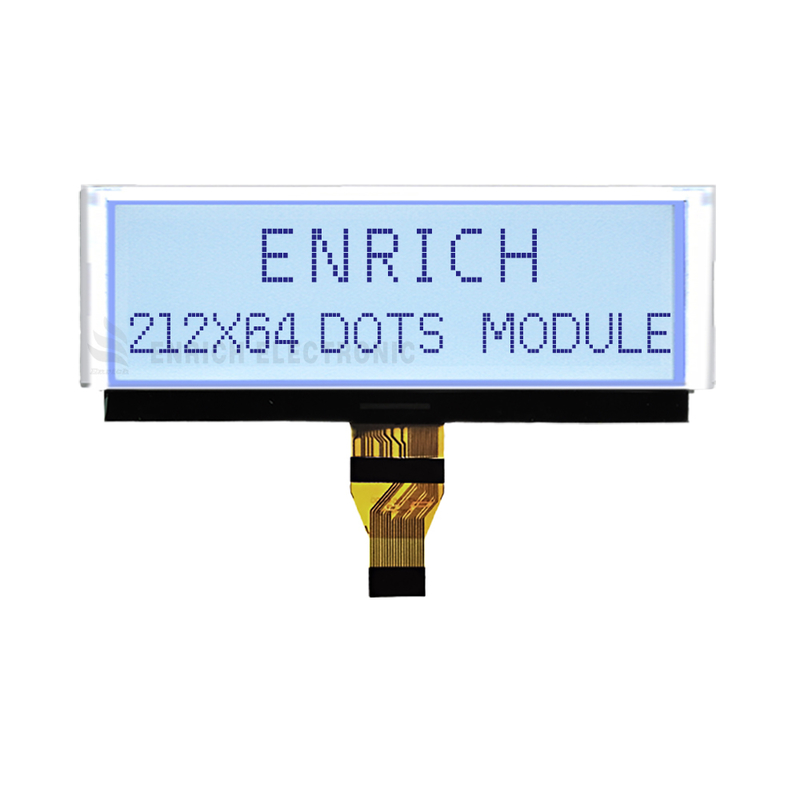

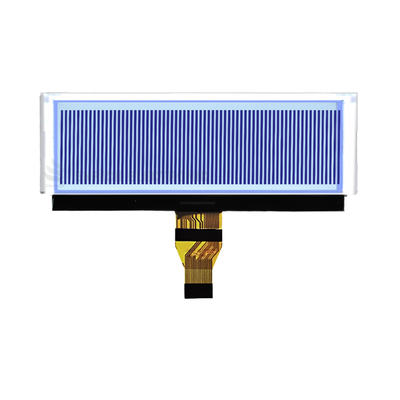

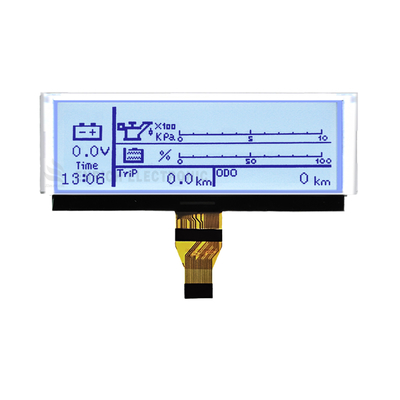

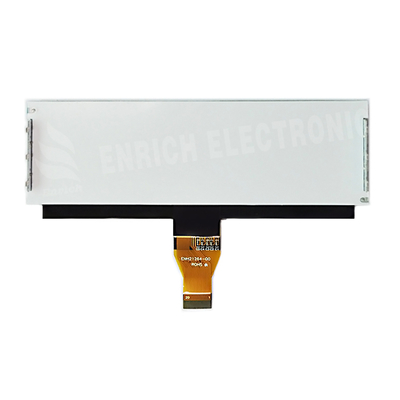

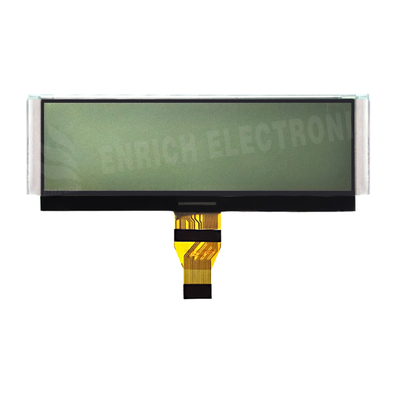

212x64 Graphic LCD Display 4.5 Inch For Communication Devices

212x64 Graphic LCD Display 4.5 Inch For Communication Devices

Model Number:	ENH-DG212064-03
Price:	$1.50-$10.00
Payment Terms:	T/T

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Certification:

Rohs，ISO9001

Size:

4.5 Inch

Display Mode:

FSTN/Transflective/Positive

Viewing Angle:

6 0'clock

Drive IC:

UC1611

Highlight:

212x64 Graphic LCD Display

4.5 Inch Graphic LCD Display

4.5 Inch graphic lcd module

Product Description

Custom 212x64 Dot Matrix Graphic LCD 6.0'Clock FSTN COG Monochrome LCD Display Module

Product Specifications

Attribute	Value
Size	4.5 Inch
Display Mode	FSTN/Transflective/Positive
Viewing Angle	6 0'clock
Drive IC	UC1611

Technical Details

Display Mode: FSTN/Transflective/Positive
Viewing Angle: 6 0'clock
Drive Method: 1/64 Duty, 1/9 Bias, Vop=9.0V, Vdd=3.0V
Operating Temperature: -20°C to +70°C
Storage Temperature: -30°C to +80°C
Connector: COG+FPC
Drive IC: UC1611S

Primary Application Areas

Industrial Control

Equipment status display
Instrumentation panels

Consumer Electronics

Portable device displays
Home appliance interfaces

Medical Devices

Portable medical instruments
Basic diagnostic devices

Transportation Systems

Shared device lock screens
In-vehicle information terminals

Retail & Payment

POS systems
Electronic shelf labels

Communication Devices

Walkie-talkie status screens
Network equipment indicators

Ratings & Review

Overall Rating

5.0

Based on 50 reviews for this product

Rating Snapshot

The following is the distribution of all ratings

5 stars

100%

4 stars

3 stars

2 stars

1 stars

All Reviews

Ruprecht

Germany Dec 4.2025

Helpful (14)

We manufacture outdoor bus electronic stop signs. The 4.5-inch dot matrix screen displays arrival information and route numbers, with the 212x64 resolution showing two lines of Chinese text clearly even under strong sunlight. The wide-temperature design keeps the display stable under summer heat and winter cold. All 200 installed signs have operated flawlessly for six months. Citizens find transfer information easy to read, helping us win the city's second-phase bus project.

Andrew

Italy Sep 24.2025

Helpful (17)

For our smart AGV's status display, we selected this 4.5-inch FSTN dot matrix screen, which shows task number, battery level, speed, and operating status on one screen under warehouse lighting. The 6 o'clock viewing angle allows maintenance staff to read with a natural downward glance during inspections, the transflective design stays clear under all warehouse lighting, and the UC1611 driver offers excellent vibration resistance. Logistics centers report complete information on the wide screen and a 50% reduction in AGV failure rates.

Ezra

France Sep 12.2025

Helpful (16)

Designed for our smart temperature patch charging case, this 4.5-inch FSTN dot matrix screen simultaneously shows left/right patch battery levels, charging status, and current temperature readings on its 212×64 wide display. The 6 o'clock viewing angle allows for easy reading when the case is placed flat on a table, and the transflective design stays clear under all indoor lighting. Hospitals report complete data on the wide screen for more scientific temperature monitoring.
