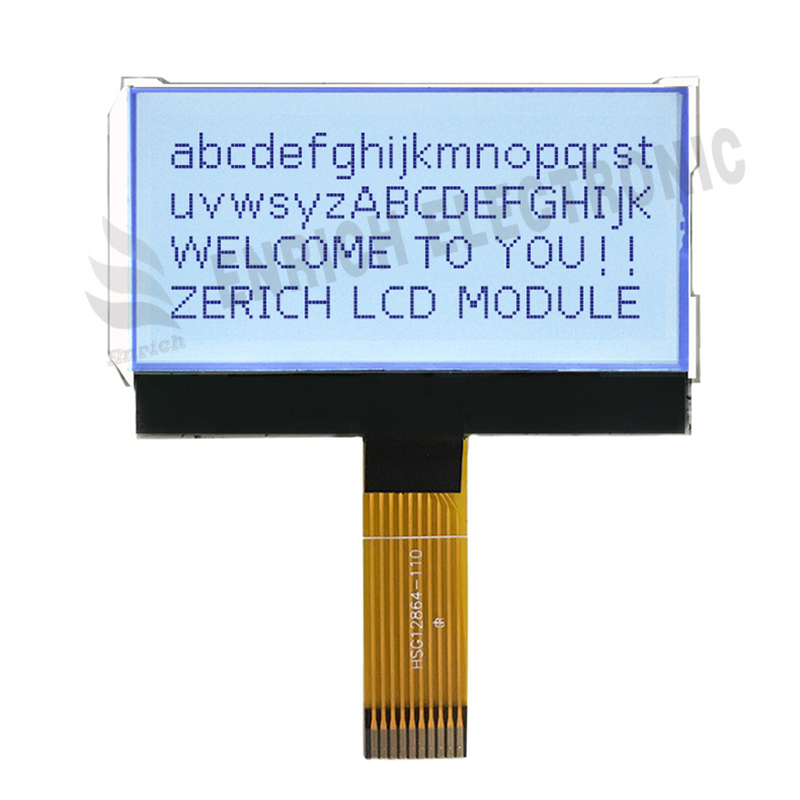

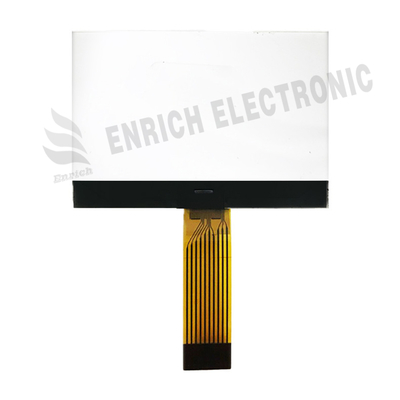

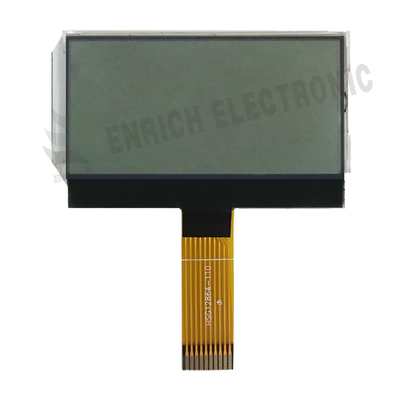

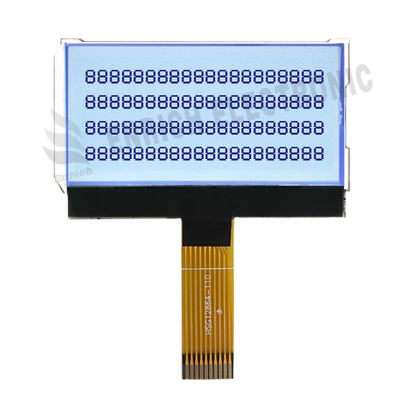

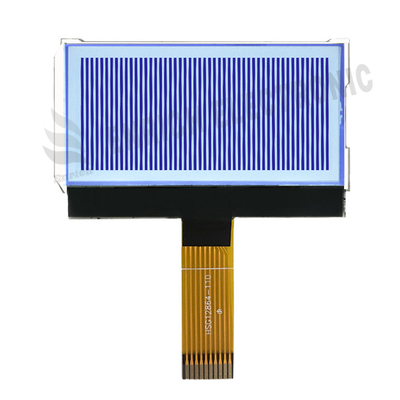

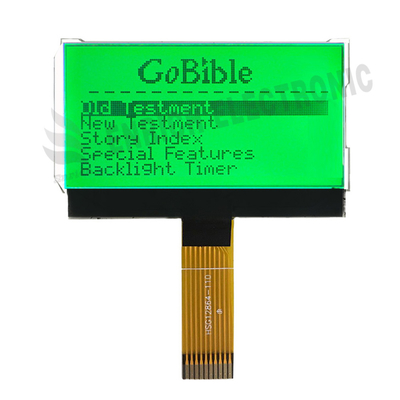

Custom Cog Lcd Module Graphic Lcd Controller FSTN Positive For Medical Devices

Custom Cog Lcd Module Graphic Lcd Controller FSTN Positive For Medical Devices

Model Number:	ENH-DG128064-146
Price:	$1.50-$10.00
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs，ISO9001

Size:

2.4 Inch

Display Mode:

FSTN/Transflective/Positive

Viewing Angle:

6 0'clock

Drive IC:

ST7567A

Highlight:

Custom Cog Lcd Module

Custom Graphic Lcd Controller

Cog Lcd Module For Medical Devices

Product Description

Custom Cog LCD Module Graphic LCD Controller FSTN Positive For Medical Devices

Product Specifications

Attribute	Value
Size	2.4 Inch
Display Mode	FSTN/Transflective/Positive
Viewing Angle	6 0'clock
Drive IC	ST7567A

Display Mode: FSTN/Transflective/Positive
Viewing Angle: 6 0'clock
Drive Method: 1/64 Duty, 1/9 Bias
Operating Temperature: -20°C ~ +70°C
Storage Temperature: -30°C ~ +80°C
Connector: COG+FPC
Drive IC: ST7567A

Primary Application Areas

Industrial Control
- Equipment status display
- Instrumentation panels
Consumer Electronics
- Portable device displays
- Home appliance interfaces
Medical Devices
- Portable medical instruments
- Basic diagnostic devices
Transportation Systems
- Shared device lock screens
- In-vehicle information terminals
Retail & Payment
- POS systems
- Electronic shelf labels
Communication Devices
- Walkie-talkie status screens
- Network equipment indicators

Frequently Asked Questions

Can small-sized LCD screens be equipped with touch functions?

Yes. This is a very common requirement. The touch panel is typically laminated onto the surface of the LCD. Main types:

Resistive Touch: Low cost, resistant to surface contaminants (dust, water), works with any object. Lower transmittance, relatively less durable (scratches), usually no multi-touch.
Capacitive Touch: High transmittance, sensitive and smooth touch, supports multi-touch, durable (glass surface). Higher cost, requires finger or special stylus, sensitive to water/oil on surface.

How long is the lifespan of a small-sized LCD screen?

Lifetime primarily refers to the Backlight lifespan (usually measured in hours until brightness drops to 50% of initial) and the reliability of the LCD Panel itself.

Backlight Lifetime: Common LED backlights typically last 30,000 to 70,000 hours (approx. 3.5 to 8 years of continuous use). High temperatures significantly reduce this.
LCD Panel Lifetime: Generally very long, often 50,000 hours or more under normal operating conditions (avoiding physical shock, extreme temperatures, excessive humidity). The screen itself typically does not suffer from "burn-in".

How long does it usually take for a sample?

Samples usually take 3 to 5 days to be dispatched.

How long is the delivery cycle generally?

The delivery time is within 20 to 30 days.
