2.3 Inch Graphic LCD Module 128x32 Dot Martix Custom LCD Display

2.3 Inch Graphic LCD Module 128x32 Dot Martix Custom LCD Display

Model Number: ENH-DG128032-04
Price: $1.50-$10.00
Payment Terms: T/T
Detail Information
Place of Origin:
China
Certification:
Rohs,ISO9001
Size:
2.3 Inch
Display Mode:
FSTN/Transflective/Positive
Viewing Angle:
12 0'clock
Drive IC:
UC1705
Highlight:

2.3 inch graphic LCD module

,

128x32 dot matrix LCD display

,

custom graphic LCD display

Product Description
2.3 Inch Graphic LCD Module 128x32 Dot Matrix Custom LCD Display
Product Overview

High-quality 2.3-inch graphic LCD module featuring 128x32 dot matrix resolution with customizable display options for various industrial and commercial applications.

Technical Specifications
Size 2.3 Inch
Display Mode FSTN/Transflective/Positive
Viewing Angle 12 0'clock
Drive IC UC1705

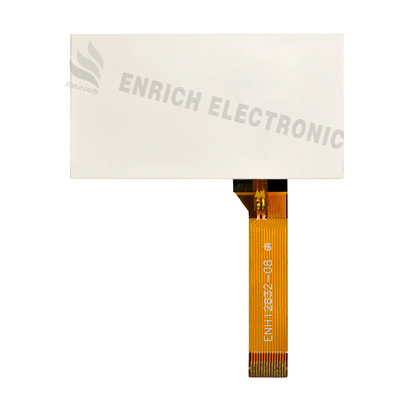

2.3 Inch Graphic LCD Module 128x32 Dot Martix Custom LCD Display 0
Detailed Features
  • Display Mode: FSTN/Transflective/Positive
  • Viewing Angle: 12 0'clock
  • Drive Method: 1/33 Duty, 1/6 Bias
  • Operating Temperature: 0°C ~ +50°C
  • Storage Temperature: -20°C ~ +70°C
  • Connector: COG+FPC
  • Drive IC: UC1705

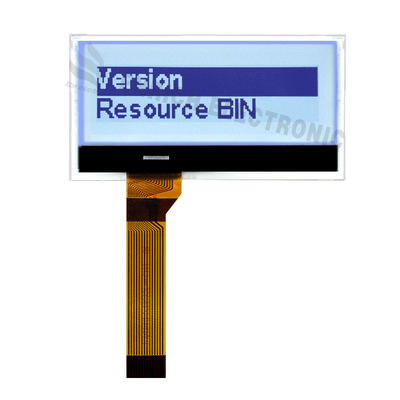

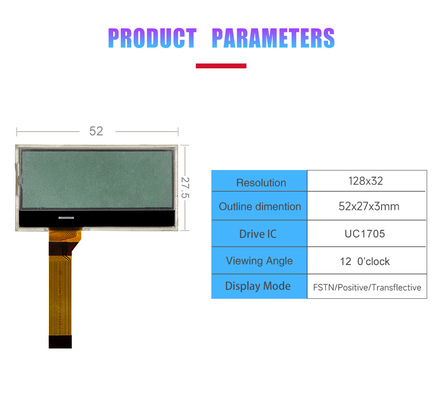

2.3 Inch Graphic LCD Module 128x32 Dot Martix Custom LCD Display 1 2.3 Inch Graphic LCD Module 128x32 Dot Martix Custom LCD Display 2
Primary Application Areas
Industrial Control
  • Equipment status display
  • Instrumentation panels
Consumer Electronics
  • Portable device displays
  • Home appliance interfaces
Medical Devices
  • Portable medical instruments
  • Basic diagnostic devices
Transportation Systems
  • Shared device lock screens
  • In-vehicle information terminals
Retail & Payment
  • POS systems
  • Electronic shelf labels
Communication Devices
  • Walkie-talkie status screens
  • Network equipment indicators

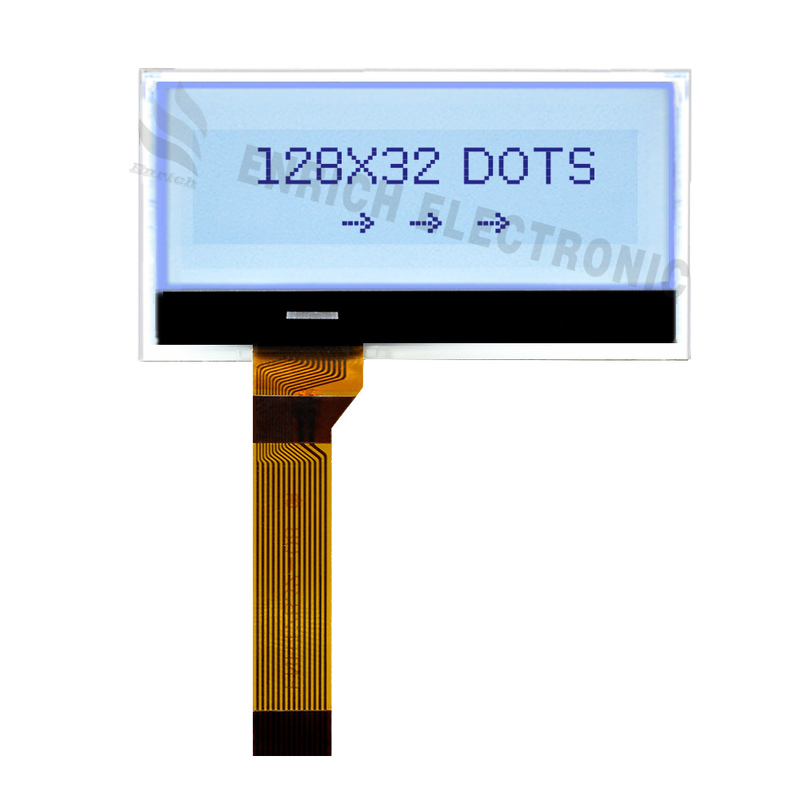

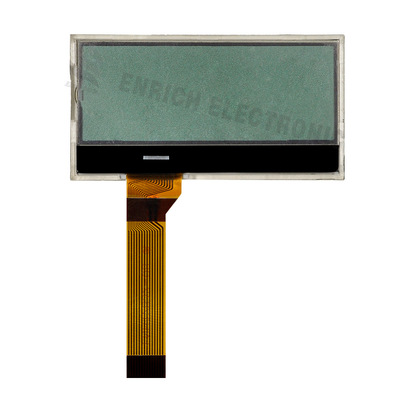

2.3 Inch Graphic LCD Module 128x32 Dot Martix Custom LCD Display 3 2.3 Inch Graphic LCD Module 128x32 Dot Martix Custom LCD Display 4 2.3 Inch Graphic LCD Module 128x32 Dot Martix Custom LCD Display 5
Frequently Asked Questions
Can small-sized LCD screens be equipped with touch functions?

Yes. This is a very common requirement. The touch panel is typically laminated onto the surface of the LCD. Main types:

  • Resistive Touch: Low cost, resistant to surface contaminants (dust, water), works with any object. Lower transmittance, relatively less durable (scratches), usually no multi-touch.
  • Capacitive Touch: High transmittance, sensitive and smooth touch, supports multi-touch, durable (glass surface). Higher cost, requires finger or special stylus, sensitive to water/oil on surface.
How long is the lifespan of a small-sized LCD screen?

Lifetime primarily refers to the Backlight lifespan (usually measured in hours until brightness drops to 50% of initial) and the reliability of the LCD Panel itself.

  • Backlight Lifetime: Common LED backlights typically last 30,000 to 70,000 hours (approx. 3.5 to 8 years of continuous use). High temperatures significantly reduce this.
  • LCD Panel Lifetime: Generally very long, often 50,000 hours or more under normal operating conditions (avoiding physical shock, extreme temperatures, excessive humidity). The screen itself typically does not suffer from "burn-in".
How long does it usually take for a sample?

Samples usually take 3 to 5 days to be dispatched.

How long is the delivery cycle generally?

The delivery time is within 20 to 30 days.
